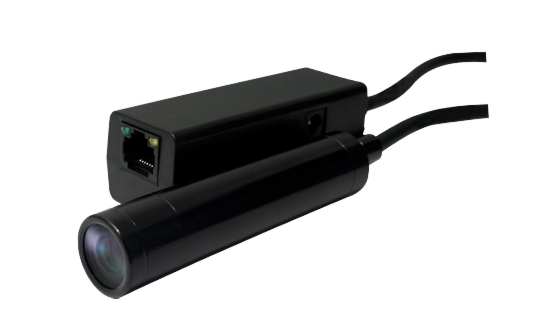

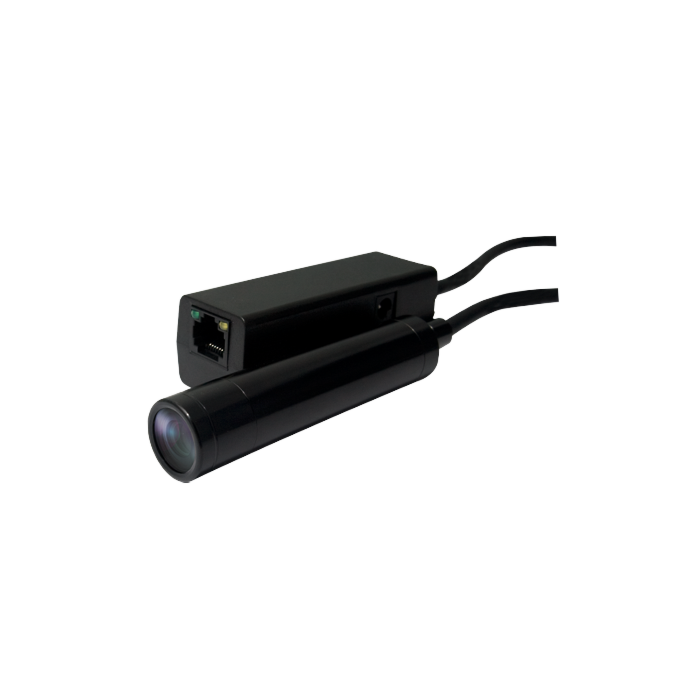

IPX IMB219-F3.6W 2MP IP True WDR Mini Bullet Camera, 1/2.8” Sony Starvis CMOS, 3.6mm Board Lens, IP67, 19Ø × 30mm
Unleash the power of vision with the Infinite Pixels IMB219-F3.6W 2MP IP True WDR Mini Bullet Camera. Boasting a 1/2.8" Sony Starvis CMOS Sensor with 2.9μm pixels, this camera sets new standards for clarity. Capture detailed 1920 x 1080 footage at 30fps, facilitated by the 3.6mm Mega Lens, with additional lens options available. The 19Ømm Bullet Miniature Water-proof Housing ensures durability in any environment.
Experience advanced features such as WDR, DSS (Sens-up), and 3DNR support, perfect for demanding machine vision and inspection applications. Onvif Ver. 17.06 compatibility guarantees seamless integration into your existing setup. Benefit from the efficiency of H.264 and MJPEG video codecs, and simplify installation with the built-in POE cable.
Precision is key in machine vision, and the IMB219-F3.6W (IMB219F3.6W) delivers with its IR Cut Filter for accurate color representation. Customize your setup with the optional Ring Mount and explore diverse lens choices. Elevate your machine vision with the Infinite Pixels IMB219-F3.6W – where clarity meets innovation.
Features:
- 1/2.8" 2.9μm Pixel Progressive Sony Starvis CMOS Sensor
- 2MP (1920 X 1080) Max. 30fps
- 19Ømm Bullet Miniature Water-proof Housing
- 3.6mm Mega Lens (Lens Options are Available)
- WDR, DSS(Sens-up), 3DNR Supported
- Onvif Ver. 17.06 Compatible
- Supported Video Codec: H.264, MJPEG
- Built-in POE Cable
- IR Cut Filter
- Optional Ring Mount
- PoE Cable
Applications:
- Industrial and manufacturing process monitoring
- Machine vision inspection systems
- Quality control in production lines
- Security surveillance for critical operations
- Low-light and high-contrast inspection tasks
- Precision imaging in automated systems
| Image | |
| Image Sensor | 1/2.8”(D-6.46mm) 2.12M Sony CMOS Sensor |
| Size | 1/2.8 inch |
| Sensitivity | 0.1Lux, 0.003Lux (DSS on) |
| Total Pixel | 1945(H) X 1109(V), 2.16 Mega Pixels |
| Effective Pixels | 1945(H) X 1097(V), 2.12 Mega Pixels |
| Function | |
| Day/Night | Auto / Day(Color) / Night(BW), ICR Control |
| Privacy Area | On / Off (16 Programmable Zones) |
| Motion Detection | 432 Zone, Sensitivity 1~5 Step, On/Off |
| WDR | True WDR, ON/Off |
| DNR | 2D DNR, 3D DNR - HDR |
| Defog | Detects Foggy, On / Off |
| Ext. Video | CVBS 1.0Vp-p (75Ω) |
| Elec. Shutter | 1/25(30)~1/30,000sec |
| Color Adjust | Bright/ Contrast / Saturation / Sharp / Hue |
| White Balance | Auto, Autoext, Preset, Manual |
| OSD Display | Via Webpage Viewer |
| Image Mirror | Normal / Mirror(H) / Flip(V) / Both(HV) |
| Electrical | |
| Power Supply | Less than 1.6 Watts (130mA) |
| Environmental | |
| Temperature | Working Temp: 32oF ~ 122oF (0oC ~ +50oC) / Preservation Temp: 14oF ~ 140oF (-10oC ~ +60oC) |
| Physical Spec | |
| Dimension | 30(W) x 30(D) (without Bracket) |
| Lens | 3.6mm (Options are Available) |
| Mount | Optional Ring Mount |
| Video | |
| Video Compression | H.264 (High, Main, Base Line Profile), MJPEG |
| Resolution | 1920x1080/1280×1024/1280×960/1280×720/1024×768/640×480/320×240 |
| Max. Frame Rate | 30fps @ all resolution |
| Video Quality | H.264: Bitrate Control, MJPEG: Quality Level Control |
| Streaming | Simultaneously H.264 and MJPEG, Independent Frame Rate and Bandwidth Contol, VBR/CBR Mode |
| Event | |
| Sensor In/Alarm Out | In: Trigger / Network Loss / Tampering / Motion, Out: FTP |
| Network | |
| Interface | RJ45 10/100 Base-T PoE |
| Protocol | TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, DHCP, FTP, SMTP, DNS, DDNS, Onvif 17.06 Compatible |
| Onvif | The Latest Version |
| Simultaneous Access | Max. 3 Users |
| FTP Uploading | MJPEG Still Image |
