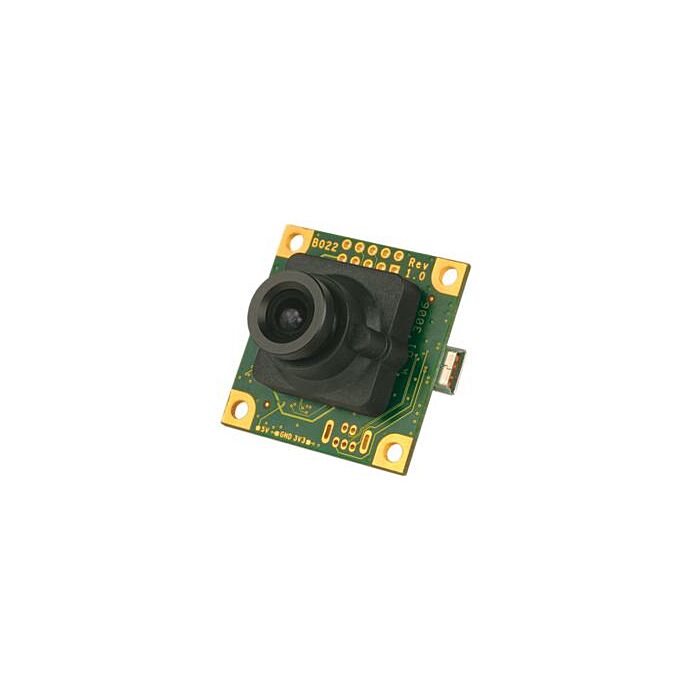

USB2.0 Color CMOS SXGA 1.3 Megapixel Camera S-Mount, M12 Model
The IDS Imaging UI-1646LE-C is a compact and versatile 1.3 megapixel (SXGA) CMOS camera engineered for industrial imaging, machine vision, and embedded system applications. Featuring the MT9M131 1/3" CMOS sensor, the UI-1646LE-C delivers reliable image capture at 1280 × 1024 resolution with efficient performance for both standard and high-speed imaging tasks.
Designed for flexibility, the UI-1646LE-C (UI1646LEC) supports advanced AOI (Area of Interest), binning, and subsampling modes, enabling significantly increased frame rates for dynamic applications. At reduced resolutions, the camera can achieve up to 270 fps (320 × 240), making it well-suited for motion tracking, automation, and real-time inspection systems.
With a rolling shutter architecture optimized for controlled environments, the camera offers a wide exposure range from 37 µs to 10 seconds, allowing it to perform in both high-speed and low-light scenarios.
The UI-1646LE-C includes TTL-compatible I/O interfaces (trigger input, flash output, and digital outputs), enabling precise synchronization with external systems such as lighting, conveyors, and triggering devices.
Built in a compact 38 × 38 × 20 mm industrial housing, and compliant with CE and FCC standards, the IDS Imaging UI-1646LE-C is ideal for OEM integration across automation, robotics, and laboratory imaging platforms.
Key Features:
- 1.3MP SXGA resolution (1280 × 1024) CMOS sensor
- 1/3" sensor (MT9M131) with 3.6 µm pixel size
- Rolling shutter for controlled lighting applications
- Up to 270 fps at reduced resolution (320 × 240 AOI mode)
- AOI, binning, and subsampling (x2, x4) for flexible performance
- Exposure range from 37 µs to 10 s for diverse lighting conditions
- TTL I/O: trigger input, flash output, and digital outputs
- Compact 38 × 38 × 20 mm design for embedded integration
- CE and FCC compliant for industrial deployment
Applications:
- Machine vision inspection
- Robotics and automation systems
- Embedded vision/OEM integration
- Motion analysis and tracking
- Laboratory and scientific imaging
- Industrial process monitoring
| Image Sensor | 1/3" CMOS |
| Resolution | 1280 (H) x 1024(V) pixel, SXGA/1.3 MP |
| Shutter | Rolling |
| max. fps in Freerun mode at full resolution | 26 fps |
| Exposure Time in Freerun mode | 37µs - 10 s |
| AOI modes | H2 + V2 |
| AOI with 320 x 240 Pixels (CIF) | 270 fps |
| Subsampling Modes | H2 + V2 |
| Subsampling Factors | x2, x4 |
| Resolution, fps | 640 x 512, 87 fps 320 x 256, 270 fps |
| Gain Modes | RGB + Master |
| I / O s | LE models xxx6, xxx7, xxx8: trigger in, flash out, 2 digital outs (TTL compatible) / optional (on request) |
| Sensor Model | MT9M131 |
| Pixel Clock | 5 - 40 MHz |
| Pixel Pitch in µm | 3,6 |
| Optical Size | 4,61 x 3,69 mm |
| Aspect Ratio | 5:4 |
| Exact Real Diagonal | 5,9 mm |
| Exact Real Diagonal | 1/2,7" |
| Regulations | CE class A, CE class B, FCC (depending on model) |
| Dimension | 38 x 38 x 20 mm (W x H x D) |
