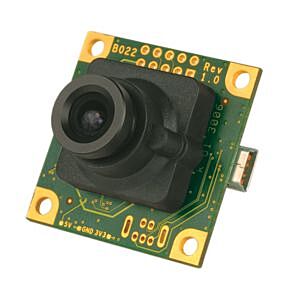

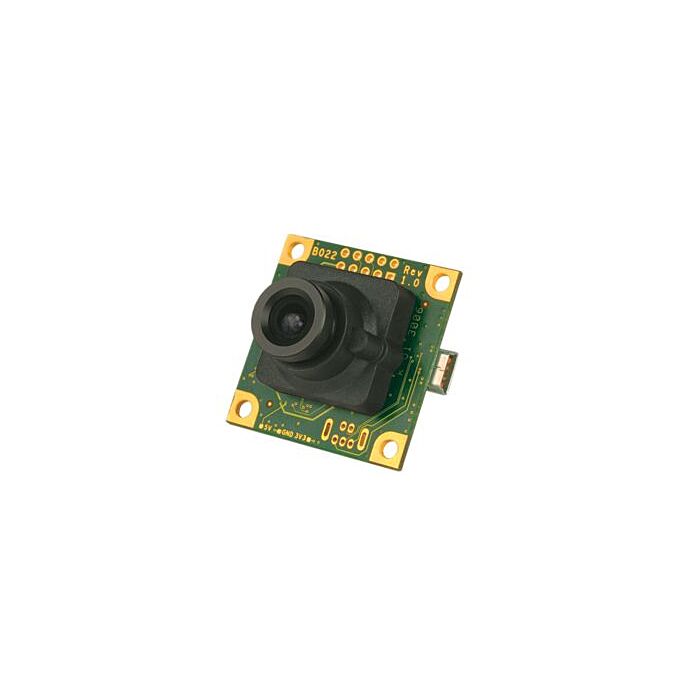

IDS Imaging UI-1466LE-C USB2.0 Color CMOS SUXGA 3.3 MegaPixel Cameras S-Mount, M12 Model
*Product is discontinued
USB2.0 Color CMOS SUXGA 3.3 MegaPixel Cameras S-Mount, M12 Model
The IDS Imaging UI-1466LE-C is a compact, high-resolution 3.3 megapixel (SUXGA) CMOS camera designed for industrial imaging, machine vision, and embedded system integration. Built around the MT9T001 1/2" CMOS sensor, this camera delivers detailed image capture at 2048 × 1536 resolution with flexible performance scaling for high-speed applications.
Optimized for OEM integration, the UI-1466LE-C supports advanced AOI (Area of Interest), binning, and subsampling modes, allowing users to significantly increase frame rates while maintaining image quality. At reduced resolutions, the camera achieves up to 220 fps (320 × 240), making it ideal for motion analysis, automation, and high-speed inspection systems.
The rolling shutter architecture is well-suited for controlled lighting environments and cost-sensitive applications, while adjustable exposure times from 57 µs to 1.75 seconds provide flexibility across varying lighting conditions.
Designed with system integration in mind, the UI-1466LE-C (UI1466LEC) includes TTL-compatible I/O (trigger input, flash output, and digital outputs), enabling precise synchronization with external devices such as strobes, conveyors, and inspection triggers.
With its compact 38 × 38 × 20 mm form factor, low power requirements, and compliance with CE and FCC standards, the IDS Imaging UI-1466LE-C is a reliable choice for embedded vision, robotics, laboratory imaging, and industrial automation systems.
Key Features:
- 3.3MP SUXGA resolution (2048 × 1536) for detailed image capture
- 1/2" CMOS sensor (MT9T001) with 3.2 µm pixel size
- Rolling shutter design for controlled lighting environments
- Up to 220 fps at reduced resolution (320 × 240 AOI mode)
- Flexible AOI, binning, and subsampling (x2, x4) for performance tuning
- Exposure range from 57 µs to 1.75 s for varied lighting conditions
- TTL I/O support: trigger input, flash output, digital outputs
- Compact industrial design (38 × 38 × 20 mm) for easy integration
- CE and FCC compliant for global deployment
Applications:
- Machine vision inspection systems
- Robotics and automation imaging
- Embedded vision integration
- Laboratory and scientific imaging
- Motion analysis and high-speed capture
- OEM industrial camera systems
| Type | UI-1466LE-C | |
| Image Sensor | 1/2" CMOS | |
| Resolution | 2048 (H) x 1536(V) pixel, SUXGA 3.3 MP | |
| Shutter | Rolling | |
| max. fps in Freerun mode at full resolution | 11 fps | |
| Exposure Time in Freerun mode | 57µs - 1,75 s | |
| AOI modes | H2 + V2 | |
| AOI with 320 x 240 Pixels (CIF) | 220 fps | |
| Subsampling Modes | H2 + V2 | |
| Subsampling Factors | x2, x4 | |
| Resolution, fps | 1024 x 768, 37 fps 512 x 384, 113 fps | |
| Binning modes | H2 + V2 | |
| Binning Method | H: Sum V: Average | |
| Binning Factors | x2, x4 | |
| Gain Modes | RGB + Master | |
| I / O s | LE models xxx6, xxx7, xxx8: trigger in, flash out, 2 digital outs (TTL compatible) | |
| Sensor Model | MT9T001 | |
| Pixel Clock | 5 - 43 MHz | |
| Pixel Pitch in µm | 3,2 | |
| Optical Size | 6,55 x 4,92 mm | |
| Aspect Ratio | 4:3 | |
| Exact Real Diagonal | 8,2 mm | |
| Exact Real Diagonal | 1/2,0" | |
| Regulations | CE class A, CE class B, FCC (depending on model) | |
| Dimension | 38 x 38 x 20 mm (W x H x D) | |
