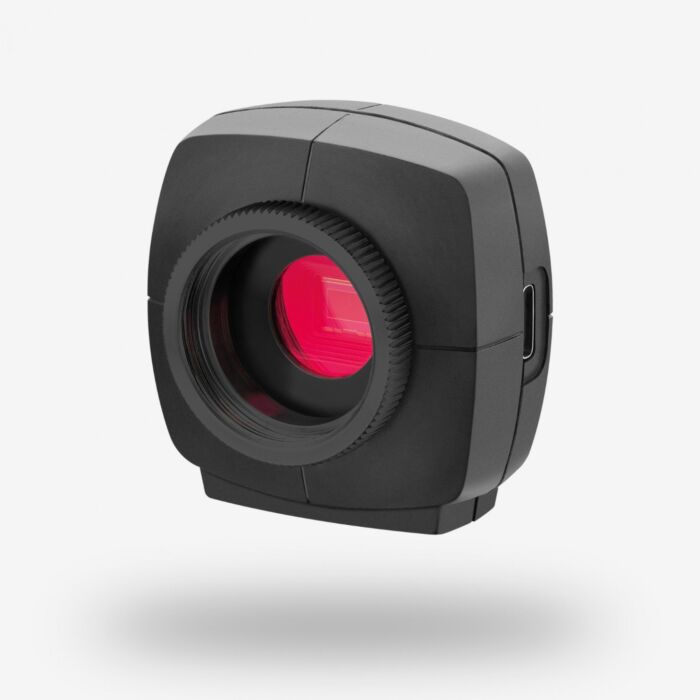

IDS Imaging U3-38J0XLE-C-HQ Rev.1.1 USB3 Housed Board Camera
With the 2x2 binning feature, it is possible to reduce the amount of data to be transmitted by a factor of four if required, thereby increasing both the light sensitivity and the frame rate. Sony's IMX415 rolling shutter sensor is available in both colour and monochrome versions and provides high-resolution data for detailed image analysis.
The compact USB3 camera is available either with a plastic housing with C/CS-mount or S-mount or as a board-level version with or without C/CS-mount or S-mount. It can be used in both industrial and non-industrial applications.
Like all other camera models of the uEye XLE family, the U3-38J0XLE-C-HQ (U338J0XLECHQ) Rev.1.1 is GenICam-compliant and thus compatible with our state-of-the-art SDK IDS peak software.
Features:
- 100% quality tested
- Plug & Play
- uEye+ software support
- USB3 Vision standard
- SuperSpeed USB 5 Gbps
- CMOS sensor
- C Lens Mount
- CS Lens Mount
- USB Type-C connector
- 3 years warranty
Applications:
- Medical technology (and laboratory automation)
- Embedded Systems
- Logistics
- Robotics
| Part # | U3-38J0XLE-M-GL Rev.1.1: 1007269 | |
| Shutter | Rolling Shutter | |
| Sensor Characteristic | Linear | |
| Readout Mode | Progressive Scan | |
| Pixel Class | 8 MP | |
| Resolution | 8.41 Mpix | |
| Resolution (H x V) | 3864 x 2176 Pixel | |
| Aspect Ratio | 4:3 | |
| ADC | 12 bit | |
| Color Depth (Camera) | 12 bit | |
| Optical Sensor Class | 1/3" | |
| Optical Size | 5.603 mm x 3.155 mm | |
| Optical Sensor Diagonal | 6.43 mm (1/2.49") | |
| Pixel Size | 1.45 µm | |
| Manufacturing | Sony | |
| Sensor Model | IMX415-AAMR-C | |
| Gain (master/RGB) | -/- | |
| AOI Horizontal | Same Frame Rate | |
| AOI Vertical | Increased Frame Rate | |
| AOI Image Width / Step Width | 24 / 24 | |
| AOI Image Height / Step Width | 40 / 4 | |
| AOI Position Grid (Horizontal/Vertical) | 2 / 4 | |
| Binning Horizontal | Increased Frame Rate | |
| Binning Vertical | Increased Frame Rate | |
| Binning Method | M/C Automatic | |
| Binning Factor | 2 | |
| Subsampling Horizontal | - | |
| Subsampling Vertical | - | |
| Subsampling Method | - | |
| Subsampling Factor | - | |
