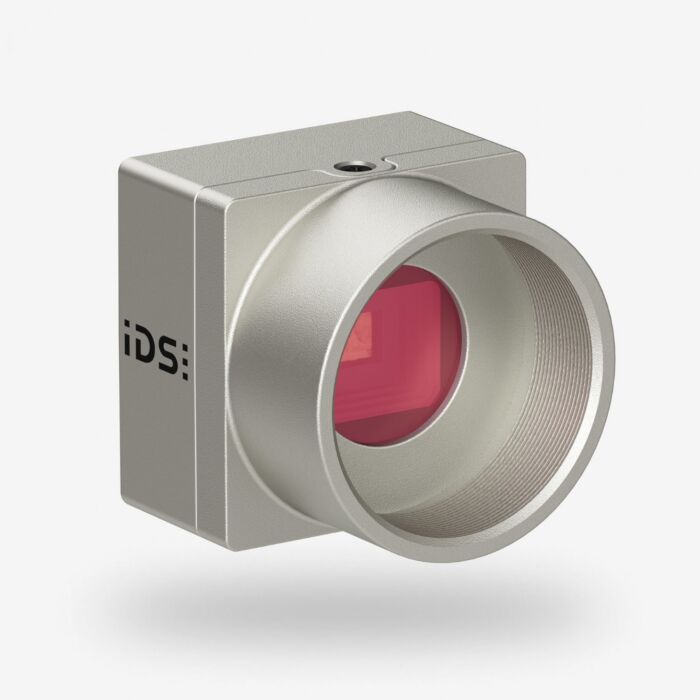

IDS Imaging U3-38J0XCP-M-GL 1/3" USB3 Monochrome Camera

The practical U3-38J0XCP industrial camera with Sony's IMX415 rolling shutter sensor is particularly suitable for visualization tasks thanks to its 4K resolution (8.41 MP, 3864 x 2176 px px, 25.1 fps) and a pixel size of 1.45 µm.
SKU
U3-38J0XCP-M-GL

With the 2x2 binning feature, it is possible to reduce the amount of data to be transmitted by a factor of four if required, thereby increasing both the light sensitivity and the frame rate. Measuring just 29 x 29 x 17 mm (W/H/L), the USB3 camera is available in both colour and monochrome versions and delivers high-resolution data for detailed image analysis. With its practical full metal housing, low weight and screwable USB3 Micro-B connector, the camera can be used in a variety of ways in both industrial and non-industrial settings.

Like all other camera models of the uEye XCP family, the U3-38J0XCP is GenICam-compliant and thus compatible with our state-of-the-art SDK IDS peak software.

Please note: If you choose a model without filter glass (monochrome sensor, matchcode component "-NO"), make sure that no dust or other particles get onto the sensor during set-up and use.

Features:

  • 100% quality tested
  • Plug & Play
  • uEye+ software support
  • USB3 Vision standard
  • SuperSpeed USB 5 Gbps
  • CMOS sensor
  • C lens mount
  • 3 years warranty


Applications:

  • Medical Technology (and laboratory automation)
  • Embedded Systems
  • Logistics
  • Robotics
Part # U3-38J0XCP-M-GL: AB03283
Shutter Rolling Shutter
Sensor Characteristic Linear
Readout Mode Progressive Scan
Pixel Class 8 MP
Resolution 8.41 Mpix
Resolution (H x V) 3864 x 2176 Pixel
Aspect Ratio 4:3
ADC 12 bit
Color Depth (Camera) 12 bit
Optical Sensor Class 1/3"
Optical Size 5.603 mm x 3.155 mm
Optical Sensor Diagonal 6.43 mm (1/2.49")
Pixel Size 1.45 µm
Manufacturing Sony
Sensor Model IMX415-AAMR-C
Gain (master/RGB) -/-
AOI Horizontal Same Frame Rate
AOI Vertical Increased Frame Rate
AOI Image Width / Step Width 24 / 24
AOI Image Height / Step Width 40 / 4
AOI Position Grid (Horizontal/Vertical) 2 / 4
Binning Horizontal Increased Frame Rate
Binning Vertical Increased Frame Rate
Binning Method M/C automatic
Binning Factor 2
Subsampling Horizontal -
Subsampling Vertical -
Subsampling Method -
Subsampling Factor -
