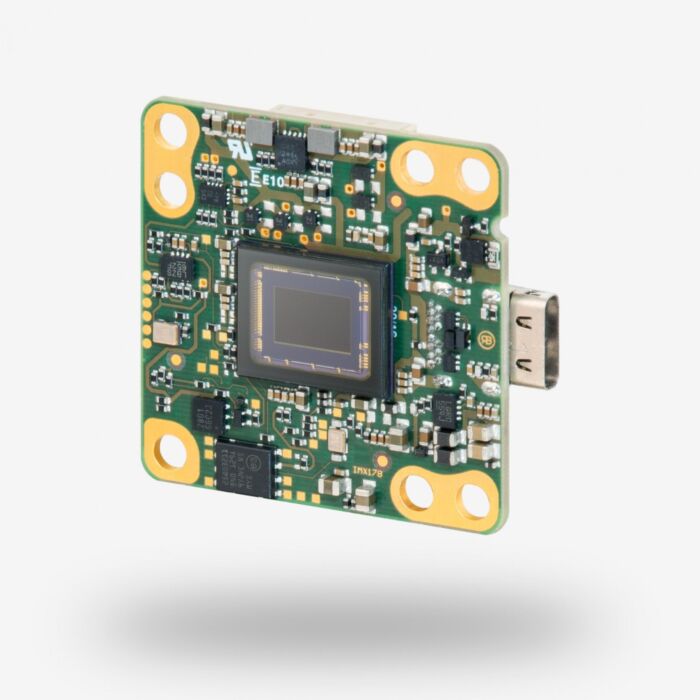

IDS Imaging U3-3882LE-M Rev.1.2 1/3" USB3 Board Level Monochrome Camera
The USB3 Vision industrial camera U3-3882LE Rev.1.2 with the rolling shutter CMOS sensor Sony IMX178 offers a very high resolution of 6.41 MP (3088 x 2076 px px), which is ideal for visualization tasks in microscopy and as a cost-efficient option for intelligent traffic monitoring systems (ITS).
SKU
U3-3882LE-M Rev.1.2
The sensor from the Sony STARVIS series features BSI technology ("back-side-illumination") and is one of the most light-sensitive sensors with a low dark current close to the SCMOS range (Scientific CMOS). It provides impressive results even under extremely low light conditions. In combination with our USB3 Vision industrial cameras, the Sony IMX178 delivers frame rates of up to 54.0 fps at full resolution. Thanks to the 1/1.8" sensor size, a wide range of C-mount lenses is available for the U3-3882LE Rev.1.2 camera model.
Special functions such as long-time exposure also extend the range of possible applications.
The U3-3882LE Rev.1.2 is available in both monochrome and colour variants.
Features:
- 100% quality tested
- Plug & Play
- uEye+ software support
- USB3 Vision standard
- SuperSpeed USB 5 Gbps
- CMOS sensor
- USB Type-C Connector
- 3 years warranty
Applications:
- Machine Vision
- Traffic and Transport (ITS)
- Medical Technology (and laboratory automation)
- Metrology
- Astronomy
| Part # | U3-3882LE-M Rev.1.2: AB03471 | |
| Shutter | Rolling Shutter / Global Shutter | |
| Sensor Characteristic | Linear | |
| Readout Mode | Progressive Scan | |
| Pixel Class | 6 MP | |
| Resolution | 6.41 Mpix | |
| Resolution (H x V) | 3088 x 2076 Pixel | |
| Aspect Ratio | 3:2 | |
| ADC | 12 bit | |
| Color Depth (Camera) | 12 bit | |
| Optical Sensor Class | 1/1.8" | |
| Optical Size | 7.411 mm x 4.982 mm | |
| Optical Sensor Diagonal | 8.93 mm (1/1.79") | |
| Pixel Size | 2.4 µm | |
| Manufacturing | Sony | |
| Sensor Model | IMX178LQJ-C | |
| Gain (master/RGB) | 14.5x/5x | |
| AOI Horizontal | Same Frame Rate | |
| AOI Vertical | Increased Frame Rate | |
| AOI Image Width / Step Width | 256 / 8 | |
| AOI Image Height / Step Width | 1 / 1 | |
| AOI Position Grid (Horizontal/Vertical) | 8 / 1 | |
| Binning Horizontal | Increased Frame Rate | |
| Binning Vertical | Increased Frame Rate | |
| Binning Method | Color | |
| Binning Factor | 2 | |
| Subsampling Horizontal | Same Frame Rate | |
| Subsampling Vertical | Same Frame Rate | |
| Subsampling Method | M/C automatic | |
| Subsampling Factor | 2, 4, 8 | |
