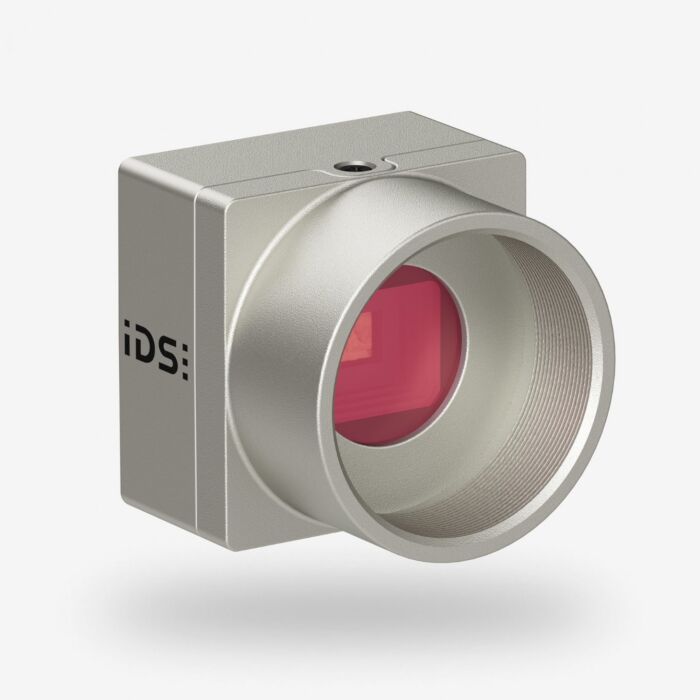

IDS Imaging U3-3680XCP-M-NO 1/2.5" USB3 Monochrome Camera

The compact U3-3680XCP industrial camera with SuperSpeed USB 5 Gbps features the versatile 1/2.5" 5.04 MP onsemi AR0521 rolling shutter CMOS sensor (2592 x 1944 px px, pixel size 2.2 µm, 48.0 fps).
SKU
U3-3680XCP-M-NO

Ideal for applications with low ambient light or changing lighting conditions. The camera, which measures only 29 x 29 x 17 mm (W/H/L), also delivers high-resolution data for detailed image evaluation in typical industrial applications. Thanks to BSI ("Back Side Illumination") pixel technology, the AR0521 sensor excels not only with superior low-light performance, but also with low power consumption, high sensitivity in the NIR range, as well as low pixel noise.

With its practical fully enclosed housing, low weight and screwable USB micro-B connector, the camera can be used in a wide range of applications in both industrial and non-industrial areas. This includes, for example, analysis tasks in laboratories, visual support of autonomously navigating vehicles or the use in combination with robots and cobots in the field of automation.

Like all other camera models of the uEye XCP family, the U3-3680XCP is GenICam-compliant and thus compatible with our state-of-the-art SDK IDS peak software.

Please note: If you choose a model without filter glass (monochrome sensor, matchcode component "-NO"), make sure that no dust or other particles get onto the sensor during set-up and use.

Also available as a variant for specific performance requirements in the near infrared range (NIR) of the spectrum, i.e. above 750nm wavelength.

Features:

  • 100% quality tested
  • Plug & Play
  • uEye+ software support
  • USB3 Vision standard
  • SuperSpeed USB 5 Gbps
  • CMOS sensor
  • C lens mount
  • 3 years warranty


Applications:

  • Machine Vision
  • Visualisation
  • Biotechnology and Life Sciences
  • Small Device Construction
  • Monitoring
  • Kiosk Systems
Part # U3-3680XCP-M-NO: AB03254
Shutter Rolling Shutter
Sensor Characteristic Linear
Readout Mode Progressive Scan
Pixel Class 5 MP
Resolution 5.04 Mpix
Resolution (H x V) 2592 x 1944 Pixel
Aspect Ratio 4:3
ADC 12 bit
Color Depth (Camera) 12 bit
Optical Sensor Class 1/2.5"
Optical Size 5.702 mm x 4.277 mm
Optical Sensor Diagonal 7.13 mm (1/2.24")
Pixel Size 2.2 µm
Manufacturing Onsemi
Sensor Model AR0521SR2C09SURA0
Gain (master/RGB) 15x/-
AOI Horizontal Same Frame Rate
AOI Vertical Increased Frame Rate
AOI Image Width / Step Width 48 / 12
AOI Image Height / Step Width 4 / 2
AOI Position Grid (Horizontal/Vertical) 8 / 2
Binning Horizontal Same Frame Rate
Binning Vertical Increased Frame Rate
Binning Method Color
Binning Factor 2
Subsampling Horizontal Same Frame Rate
Subsampling Vertical Increased Frame Rate
Subsampling Method Color
Subsampling Factor 2, 4
