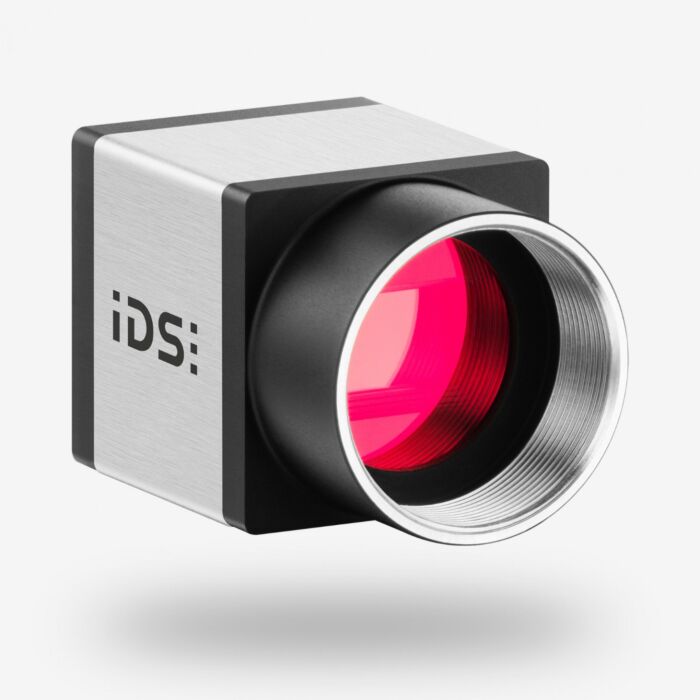

IDS Imaging U3-31J0CP-M-GL Rev.2.2 2/3" USB3 Monochrome Housed Global Shutter Camera
SKU
U3-31J0CP-M-GL Rev.2.2
Quick Overview
The industrial camera U3-31J0CP Rev.2.2 features a distinctive housing of only 29 x 29 mm and is equipped with the square Sony Pregius S CMOS sensor IMX546. It offers 8.13 MP resolution and achieves 47.0 fps.
This fourth-generation sensor combines Global Shutter and BSI (Backside Illumination) technology, which help to image moving objects without distortion and increase the sensor's sensitivity to light. Since the pixel size is only 2.74 µm, the available area of the 2/3" sensor (aspect ratio of 1:1) is utilized to the fullest - for superior image quality even in changing light conditions.
Thanks to its USB3 vision interface, the industrial camera is uncompromisingly compliant to the Vision Standard and can therefore be conveniently used with our IDS peak SDK.
The uEye+ CP camera is available as a monochrome or color version.
Features:
- 100% quality tested
- Plug & Play
- uEye+ software support
- USB3 Vision standard
- SuperSpeed USB 5 Gbps
- CMOS sensor
- C Lens Mount
- Color Correction In Camera
- Integrated Image Memory With 128 MB
- Industrial Standard: 29 x 29 x 29 mm
- 3 years warranty
Applications:
- Machine Vision
- Metrology
- Surface Inspection
- Agricultural Applications
- Medical Technology (and laboratory automation)
- Biotechnology and Life Sciences
| Part # | U3-31J0CP-M-GL Rev.2.2: 1009063 | |
| Shutter | Global Shutter | |
| Sensor Characteristic | Linear | |
| Readout Mode | Progressive Scan | |
| Pixel Class | 8 MP | |
| Resolution | 8.13 Mpix | |
| Resolution (H x V) | 2856 x 2848 Pixel | |
| Aspect Ratio | 1:1 | |
| ADC | 12 bit | |
| Color Depth (Camera) | 12 bit | |
| Optical Sensor Class | 2/3" | |
| Optical Size | 7.825 mm x 7.804 mm) | |
| Optical Sensor Diagonal | 11.05 mm (1/2.55") | |
| Pixel Size | 2.74 µm | |
| Manufacturing | Sony | |
| Sensor Model | IMX546AAMJ-C | |
| Gain (master/RGB) | 15.9x/- | |
| AOI Horizontal | Same Frame Rate | |
| AOI Vertical | Increased Frame Rate | |
| AOI Image Width / Step Width | 256 / 2 | |
| AOI Image Height / Step Width | 1 / 1 | |
| AOI Position Grid (Horizontal/Vertical) | 2 / 1 | |
| Binning Horizontal | Same Frame Rate | |
| Binning Vertical | Same Frame Rate | |
| Binning Method | M/C Automatic | |
| Binning Factor | 2 / 4 / 8 | |
| Subsampling Horizontal | Same Frame Rate | |
| Subsampling Vertical | Same Frame Rate | |
| Subsampling Method | M/C automatic | |
| Subsampling Factor | 2, 4, 8 | |
