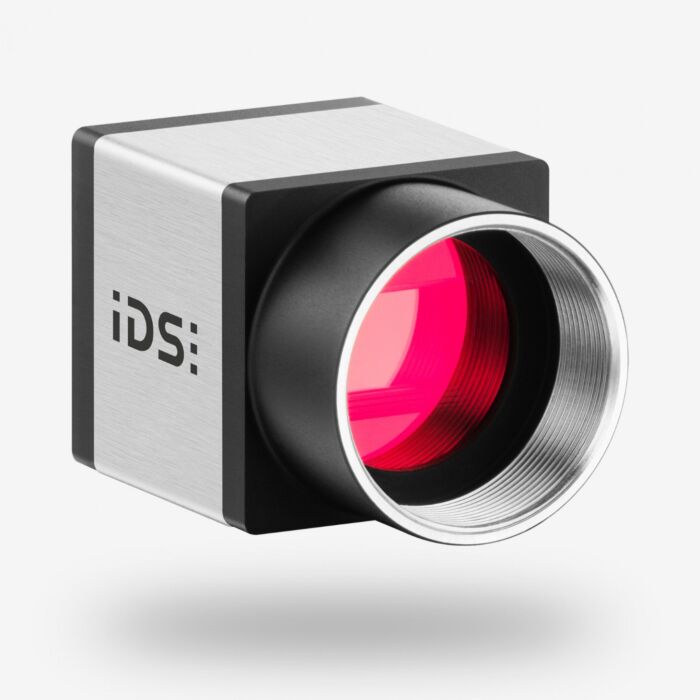

IDS Imaging U3-30C0CP-C-HQ Rev.2.2 1/2" USB3 Color Housed Camera

The U3-30C0CP Rev.2.2 industrial camera with USB3 interface (SuperSpeed USB, 5 Gpbs) and the light-sensitive global shutter CMOS sensor IMX392 from the second generation of the Sony Pregius series offers a resolution of 2.35 MP (1936 x 1216 px px, pixel size 3.45µm).
SKU
U3-30C0CP-C-HQ Rev.2.2

With up to 166 fps and Full HD, it is perfect for high-speed applications, for example in automation or quality assurance. Furthermore, the sensor is predestined for tasks that require a perfect result even in low-light conditions.

The U3-30C0CP Rev.2.2 is an all-rounder in the class of 2 MP global shutter industrial cameras and provides excellent image quality thanks to its enormous sensitivity, high dynamic range and low noise. Thanks to these characteristics, it finds its place in virtually any application. The camera is available in both monochrome and color versions. The small sensor format with a diagonal of 7.9 mm allows a wide choice of low-cost lenses.



Features:

  • 100% quality tested
  • Plug & Play
  • uEye+ software support
  • USB3 Vision standard
  • SuperSpeed USB 5 Gbps
  • CMOS sensor
  • C Lens Mount
  • Color Correction In Camera
  • Integrated Image Memory With 128 MB
  • Industrial Standard: 29 x 29 x 29 mm
  • 3 years warranty


Applications:

  • Machine Vision
  • Metrology
  • Surface Inspection
  • Logistics
  • Sports and Motion Analysis
  • Endless Web Inspection
Part # U3-30C0CP-C-HQ Rev.2.2: AB13403
Shutter Global Shutter
Sensor Characteristic Linear
Readout Mode Progressive Scan
Pixel Class 2 MP
Resolution 2.35 Mpix
Resolution (H x V) 1936 x 1216 Pixel
Aspect Ratio 16:10
ADC 12 bit
Color Depth (Camera) 12 bit
Optical Sensor Class 1/2"
Optical Size 6.679 mm x 4.195 mm)
Optical Sensor Diagonal 7.89 mm (1/2.03")
Pixel Size 3.45 µm
Manufacturing Sony
Sensor Model IMX392LQR-C
Gain (master/RGB) 16x/16x
AOI Horizontal Same Frame Rate
AOI Vertical Increased Frame Rate
AOI Image Width / Step Width 256 / 8
AOI Image Height / Step Width 2 / 2
AOI Position Grid (Horizontal/Vertical) 8 / 2
Binning Horizontal Same Frame Rate
Binning Vertical Same Frame Rate
Binning Method M/C Automatic
Binning Factor 2 / 4 / 8
Subsampling Horizontal Same Frame Rate
Subsampling Vertical Same Frame Rate
Subsampling Method M/C automatic
Subsampling Factor 2, 4, 8
