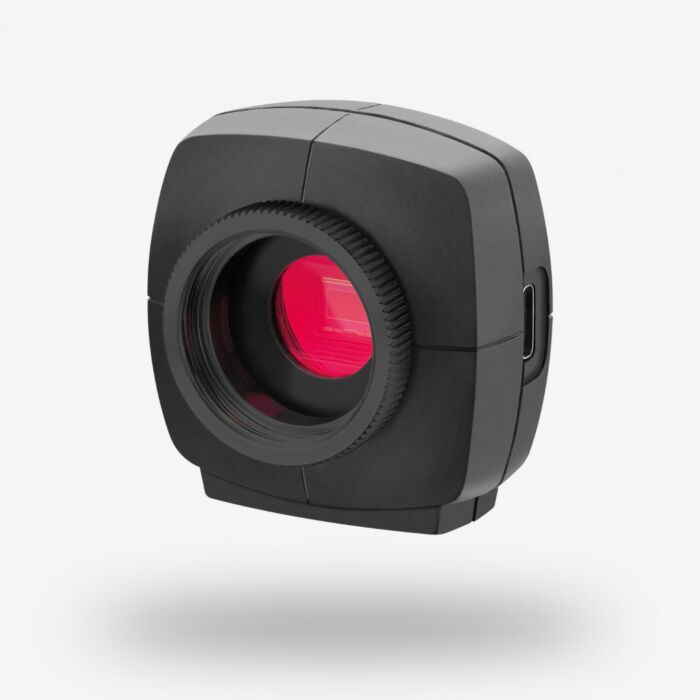

IDS Imaging U3-3040LE-M-GL Rev.1.2 1/3" USB3 Monochrome Housed Camera

Excellent image quality even in low light scenarios or when the camera should take pictures of fast-moving objects: the cost-effective global shutter CMOS sensor IMX273 from the Sony Pregius series excels through its image quality, high sensitivity and wide dynamic range.
SKU
U3-3040LE-M-GL Rev.1.2

With a resolution of 1.58 MPix (1456 x 1088 px px) at 3.45 µm pixels, it delivers impressive 230 fps when used with the USB3 Vision industrial camera U3-3040LE Rev.1.2. This makes this camera ideal for cost-sensitive and demanding machine vision applications such as surface inspections, detailed image analysis in medical technology or traffic applications.

Special functions such as long-time exposure also extend the range of possible applications.

The U3-3040LE Rev.1.2 is available in both monochrome and colour variants.

Features:

  • 100% quality tested
  • Plug & Play
  • uEye+ software support
  • USB3 Vision standard
  • SuperSpeed USB 5 Gbps
  • CMOS sensor
  • C Lens Mount
  • CS Lens Mount
  • USB Type-C Connector
  • 3 years warranty


Applications:

  • Machine Vision
  • Metrology
  • Surface Inspection
  • Logistics
  • Sports and Motion Analysis
  • Endless Web Inspection
Part # U3-3040LE-M-GL Rev.1.2: AB03437
Shutter Global Shutter
Sensor Characteristic Linear
Readout Mode Progressive Scan
Pixel Class 1.6 MP
Resolution 1.58 Mpix
Resolution (H x V) 1456 x 1088 Pixel
Aspect Ratio 4:3
ADC 12 bit
Color Depth (Camera) 12 bit
Optical Sensor Class 1/3"
Optical Size 5.032 mm x 3.754 mm)
Optical Sensor Diagonal 6.28 mm (1/2.55")
Pixel Size 3.45 µm
Manufacturing Sony
Sensor Model IMX273LLR-C
Gain (master/RGB) 24x/4x
AOI Horizontal Same Frame Rate
AOI Vertical Increased Frame Rate
AOI Image Width / Step Width 256 / 8
AOI Image Height / Step Width 1 / 1
AOI Position Grid (Horizontal/Vertical) 8 / 1
Binning Horizontal Increased Frame Rate
Binning Vertical Increased Frame Rate
Binning Method Mono
Binning Factor 2
Subsampling Horizontal Same Frame Rate
Subsampling Vertical Same Frame Rate
Subsampling Method M/C automatic
Subsampling Factor 2, 4, 8
