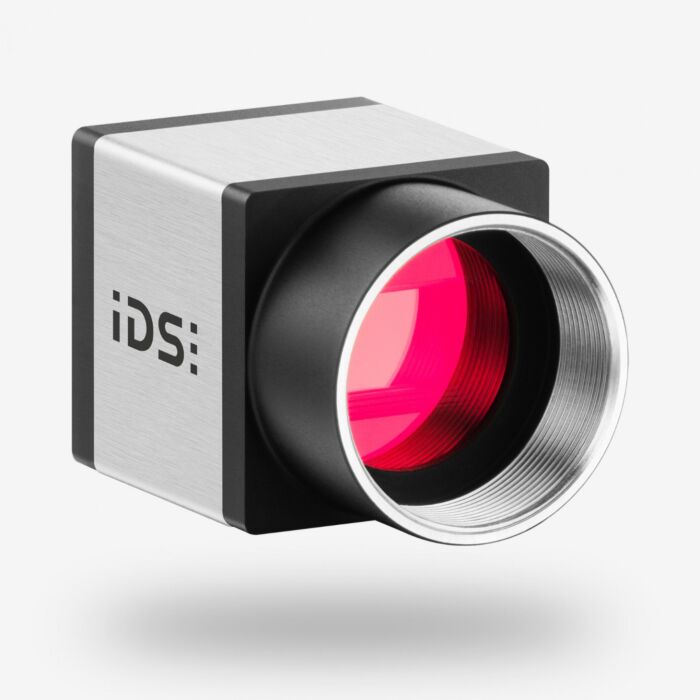

IDS Imaging U3-3040CP-M-GL Rev.2.2 1/3" USB3 Monochrome Housed Global Shutter Camera

Unlock Superior Precision and Speed with IDS Imaging’s U3-3040CP-M-GL Rev.2.2 Camera

The IDS Imaging U3-3040CP-M-GL Rev.2.2 camera is a top-tier solution designed for industrial and machine vision applications that demand high precision and speed. Powered by the Sony Pregius IMX273 CMOS sensor, this camera delivers exceptional image quality even in challenging lighting conditions, thanks to its high sensitivity and wide dynamic range. With a resolution of 1.58 MP (1456 x 1088 pixels) and a pixel size of 3.45 µm, it captures up to 251 frames per second, making it ideal for tasks requiring fast and detailed image capture.

This camera is perfectly suited for surface inspections, where the need for clear, precise images is critical, and for detailed image analysis in medical technology, where accuracy can impact outcomes. Additionally, its capabilities extend to traffic surveillance, where it excels in capturing fast-moving objects with clarity. The U3-3040CP-M-GL (U33040CPMGL) Rev.2.2 is supported by IDS Vision firmware 2.20 and higher and offers advanced features like long-time exposure up to 30 seconds and a line scan mode, making it a versatile choice for various industrial applications.

Features:

• 1.58 MP Sony Pregius IMX273 CMOS sensor
• Global shutter for sharp image capture
• 251 fps at full resolution
• High sensitivity and wide dynamic range
• Long-time exposure up to 30 seconds
• Line scan camera mode
• Compact industrial design (29 x 29 x 29 mm)
• USB3 Vision standard with 5 Gbps speed
• uEye+ software support

Applications:

• Surface inspections
• Detailed image analysis in medical technology
• Traffic surveillance
• Logistics and supply chain monitoring
• Sports and motion analysis
• Endless web inspection
