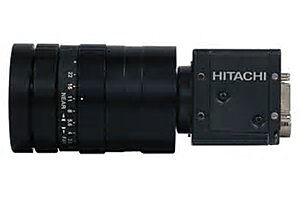

Kokusai Denki America KP-FM500WCL 2/3" 5MP High Frame Rate Camera
SKU
KP-FM500WCL
Quick Overview
Hitachi's KP-FM500WCL includes a Camera Link output that utilizes the 2/3 –inch progressive scan CMOS image sensor with square pixel.
Kokusai Denki America's KP-FM500WCL (KPFM500WCL) is a 2/3" CMOS high frame-rate camera.
Features:
- 2/3” Format GS-CMOS Sensor with 5.05 Million Pixels
- 2464 x 2056 Effective Pixels
- Automatic Switching SCL or PCL CameraLink Output
- 8 bits per Pixel
- 163 Frames / Second
- Frame-on-Demand Mode
- Partial Scan Mode AOI
- RoHS Compliant
Applications:
- Machine Vision
- Factory Automation
- Inspection
| Imaging Sensor | 2/3 inch progressive scan GS-CMOS |
| Pixel Size | 3.45μm(H) x 3.45μm(H) (Square pixel) |
| Effective Pixels | 2464 (H) x 2056 (V) |
| Frame Rate | CameraLink 8bit 163fps |
| Electronic shutter | 1/60 to 1/50,000 sec or variable |
| Other features | Trigger function, AOI (horizontal / vertical) |
| Lens Mount | C-Mount |
| External Dimensions | 44(W)x44(H)x41(D)mm (Except protrusion) |
| Weight | Approx. 130g without lens |
