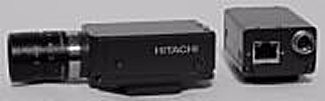

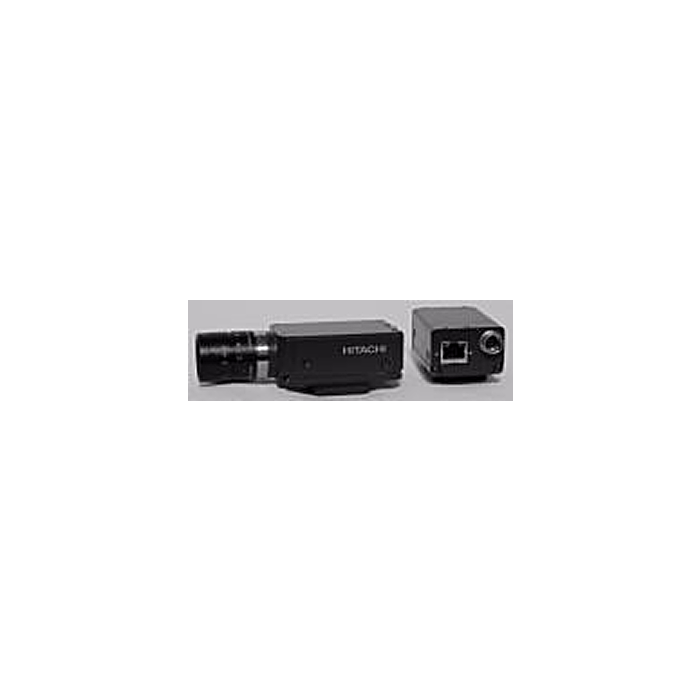

Kokusai Denki America KP-FD202GV 1/1.8" CCD UXGA GigE Camera

Name: Kokusai Denki America KP-FD202GV 1/1.8" CCD UXGA GigE Camera
Brand: Hitachi
SKU: KP-FD202GV

SKU

KP-FD202GV

Quick Overview

Hitachi KP-FD202GV 1/1.8" CCD GigE Camera is highly suitable for image processing in fast paced environments.

Hitachi's KP-FD202GV (KPFD202GV) is a color camera built for industrial imaging.

Features:

1/1.8” Format Progressive Scan CCD with RGB primary color filter

18 Frames Per Second

1628 x 1236 Effective Pixels

UXGA Resolution

Selectable 8, 10, or 12 bits / pixel

Selectable Gamma

Selectable Shutter and ALC Mode

Adjustable R/B Black and Gain Levels

Adjustable Sharpness and Knee Levels

6 Vector Color Corrector

Frame-on-Demand Mode

Binning and Partial Scan Modes

Includes Driver and Viewer Software

RoHS Compliant

Applications:

Industrial Inspection

Industrial Imaging

Machine Vision

Imaging Sensor	1/1.8-inch progressive scan interline CCD
Effective Pixels	1628 (H) x 1236 (V)
Pixel Size	4.4 um (H) x 4.4 um (V) (square lattice)
Color Type	Color
Frame Rate	18 frames per second (full pixel readout RGB 8bit)
Electronic shutter	OFF / Auto (AES) / Manual (PRESET or VARIABLE) OFF is normal exposure (frame rate)
Lens Mount	C-Mount
External Dimensions	44(W) x 29(H) x 72(D) mm (not including protrusions)
Weight	Approx. 140g
