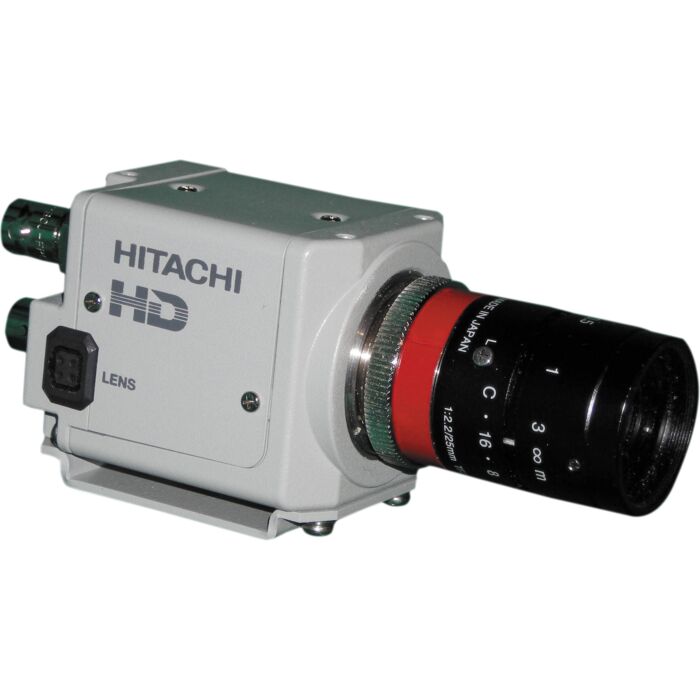

main product photo

Hitachi KP-HD20AV Compact HDTV Color Camera

SKU
Hitachi KP-HD20AV
Please call for pricing
❤
Add to Compare
Quick Overview
2.1 million pixels, 1/3 inch RGB Bayer Filter MOS Sensor, C / CS Mount.

Compact camera body size (44mm width and height) combined with light weight make this a flexible unit for many applications. High sensitivity of minimum photographic subject illumination 0.3lx means this camera can be used in many low light situations.

Features:

  • Full HD(HD-SDI)for Industrial use - 2.1 million pixel RGB Beyer CMOS sensor, External event trigger for machine vision use
  • Coaxial cable transmission - Easy replacement of conventional analogue (PAL/NTSC), camera with this full HD model, since it can transmit HD-SDI signal with existing coax cables. Approx. 100m transmission is realized by 5C-2V. Coax cable
  • Small size/light weight / high sensitivity - Compact camera body size (44mm width and height) combined with light weight make this a flexible unit for many applications. High sensitivity of minimum photographic subject illumination 0.3lx means this camera can be used in many low light situations
  • Non-compressing high definition
  • Low delay (less than 16 ms) Direct monitoring is possible


    • Applications:

  • Industrial
  • Inspection
  • Machine Vision
  • Factory Automation
    • Imaging Device1/3" MOS
    Total Number of Pixels2.55M pixels
    Effective Pixels2.35M pixels
    Video Format HD-SDI: 1080i 59.94/50, 1080P 30/29.97 CVBS: NTSC, PAL
    Video Output

    HD-SDI Standard mode : Approx.100m (5C-FB 75)
    HD-VLC mode : Approx. 300m
    (5C-FB 75 / with Multi Unit (MU-HD101)

    Minimum Photographic Subject Illumination 0.05lx (F1.2/AGC : MAX/GAMMA: HIGH)
    AGCON/OFF
    Electronic ShutterFixed/AES
    Backlight CompensationON/OFF (Area to selection is possible.)
    White Balance ControlAuto/Priset/Manual
    Contrast CompensationOptimizes dark areas of the image
    LensesDC / VIDEO
    Remote ControlRS-232C
    Lens MountC/CS mount
    Power Supply VoltageDC+12V
    Ambient, Operating-10℃ to +50℃
    External Dimensions *Approximately 44(W) x 44(H) x 59(D)mm
    Mass *Approximately 2000g (The lens is excluded)
