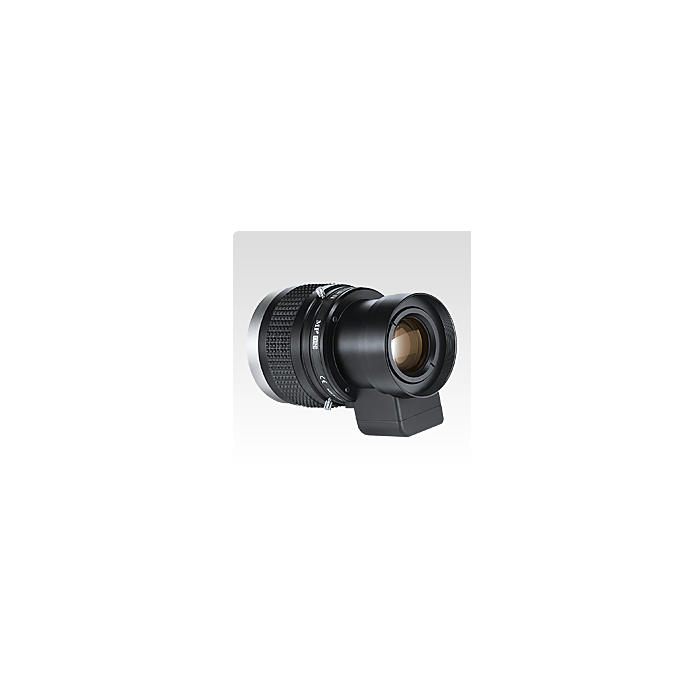

HF50SR4A-SA1L (HF50SR4ASA1L): Fujinon 2/3" 50 Megapixel Lens (C-Mount)

Name: HF50SR4A-SA1L (HF50SR4ASA1L): Fujinon 2/3" 50 Megapixel Lens (C-Mount)
SKU: HF50SR4A-SA1L

SKU

HF50SR4A-SA1L

Quick Overview

HF50SR4A-SA1L C-Mount 50mm Fixed Focal Day/Night Lens for CCTVs.

High image-quality surveillance with optical performance supporting 5 megapixels.

Features:

Format: 2/3"

Focal Length: 50mm

Aperture: F2.8

Iris Type: DC Auto-Iris

Mount: C-Mount

Applications:

CCTV

Security

Surveillance

Description

IR corrected
For 2/3" ~ 1/3" cameras

Focal length in mm

Iris Range

F2.8~T360

Operation Iris

Auto (DC Type)

Operation focus

Manual

Object Dimensions at M.O.D. (in mm)

2/3":
179 x 134

1/2":
130 x 97

1/3":
97 x 73

Angle of view

2/3":
10° 3' x 7° 33'

1/2":
7° 19' x 5° 30'

1/3":
5° 30' x 4° 7'

Minimum object distance (M.O.D.) in m

Focusing range (from front lens) in m

limitless ~ 1

Mount

Weight

260

Filter thread

M40.5 x 0.5
