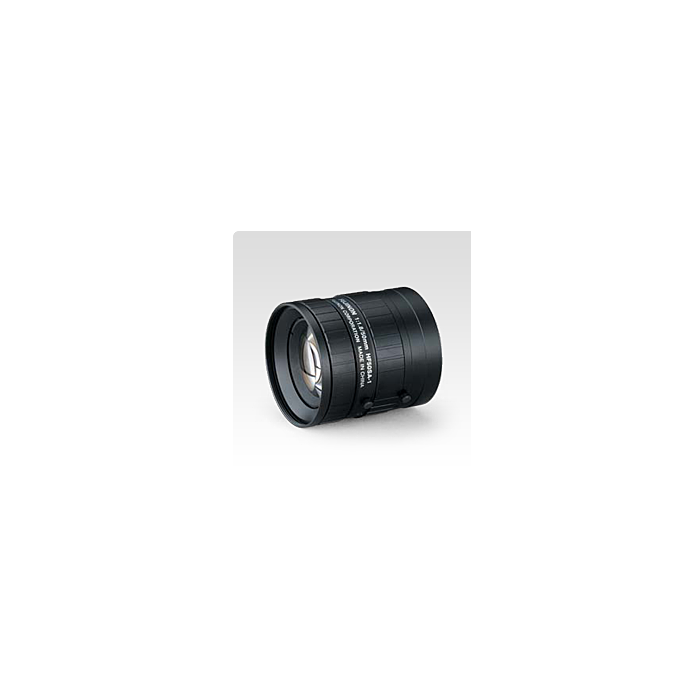

HF50SA-1 (HF50SA1): Fujinon 2/3" 50mm 5 Megapixel Lens (C-Mount)
Fujinon's HF50SA-1 high resolution C-mount lens supports digital cameras up to 5 megapixels and uses superior optics designed for factory automation and machine vision.
SKU
HF50SA-1
The HF50SA-1 is a compact and robust lens featuring a rear focusing system for applications where highly detailed close-up imaging is a priority.
Features:
Applications:
| Focal Length | 50mm |
| Iris Range | F1.8-F22 |
| Angle of View |
9.7° x 7.3°(2/3") |
| Focus range (from front of the lens) (mm) | ∞-400 |
| Operation Focus | Manual |
| Operation Iris | Manual |
| Filter Thread | M49x0.75 |
| TV Distortion (%) | 0.08 |
| Mount | C-Mount |
| Sensor Size (max.) | 2/3" |
| Weight | 240g |
