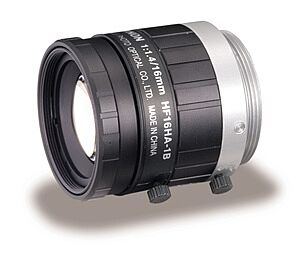

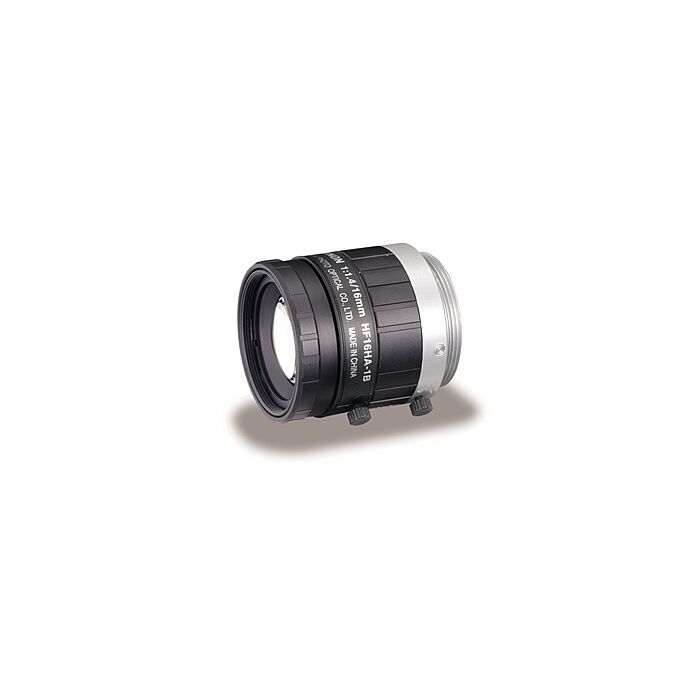

HF16HA-1B (HF16HA1B): Fujinon 2/3" 16mm 1.5 Megapixel Lens (C-Mount)
SKU
HF16HA-1B
Quick Overview
HF16HA-1B 16mm f/1.4 Fixed Focal Lens with C-Mount and Locking Iris/Focus for 2/3-Inch CCD is built for Industrial and Machine Vision Applications
Designed for low distortion the HF16HA-1B is ideal for industrial imaging applications.
Features:
Applications:
| Focal Length | 16mm |
| Iris Range | F1.4-F16 |
| Angle of View | 30.5° x 22.9°(2/3") |
| Focus range (from front of the lens) (mm) | ∞-100 |
| Operation Focus | Manual |
| Operation Iris | Manual |
| Filter Thread | M25.5x.05 |
| Mount | C-Mount |
| Sensor Size (max.) | 2/3" |
| TV Distortion | -0.87 |
| Weight | 45g |
