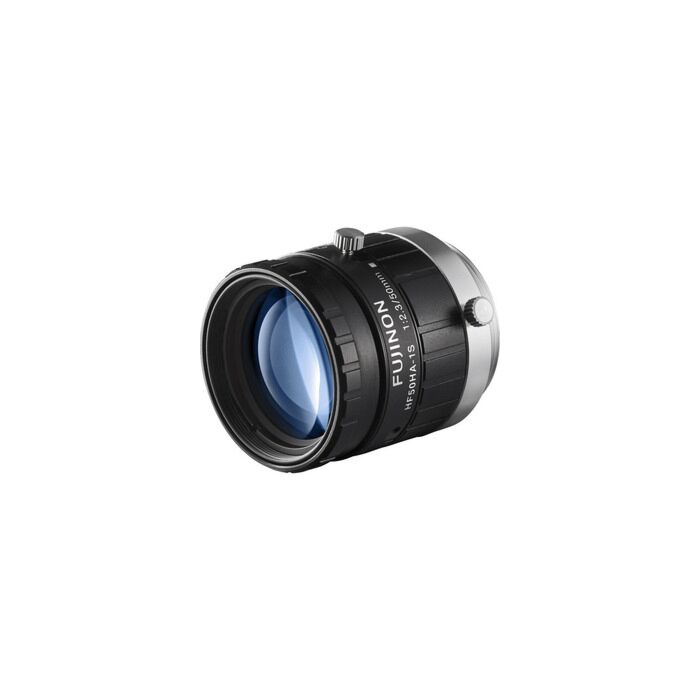

Fujinon HF50HA-1S | 2/3" 50mm Fixed Focal Length Lens, 1.5MP, 6.2µm Pixel, C-Mount, Vibration Resistant, Manual Iris
The Fujinon HF50HA-1S is a high-resolution fixed focal length lens designed for 2/3" image sensors with a pixel pitch of 6.2µm, delivering sharp image quality optimized for 1.5-megapixel machine vision applications. Its 50mm focal length and manual iris control range (F2.3–F22) provide versatile optical performance, allowing precise control over focus and exposure for various industrial inspection and automation tasks. The lens offers a 10.1° × 7.6° angle of view with minimal TV distortion of just 0.06%, ensuring accurate and undistorted imaging across the sensor plane.
Built on Fujifilm’s patented Anti Shock & Vibration Technology, the HF50HA1S lens is engineered to withstand harsh environments with resistance to vibrations in the 10–500 Hz frequency range, compliant with JIS C 60068-2-6 standards. Weighing only 45g with a compact Φ29.5 mm × 29.5 mm form factor, the lens fits seamlessly into compact vision systems. It supports manual focus from infinity to 500mm working distance, making it suitable for a wide range of precision measurement and inspection applications in manufacturing, robotics, and automated quality control.
Features:
- Compatible with 2/3" sensors, optimized for 6.2µm pixel pitch (1.5MP resolution)
- Fixed focal length of 50mm with a 10.1° × 7.6° angle of view
- Manual iris control from F2.3 to F22 for exposure flexibility
- Manual focus adjustable from infinity to 500mm working distance
- Low TV distortion of 0.06% ensures high image fidelity
- Fujifilm Anti Shock & Vibration Technology withstands industrial vibrations (10–500 Hz)
- Compact and lightweight: 29.5 mm diameter × 29.5 mm length, 45 grams
- C-mount interface with M25.5 × 0.5 filter thread compatibility
Applications:
- Industrial machine vision and automated inspection systems
- Precision measurement and metrology applications
- Robotics vision for positioning and guidance
- Automated quality control in manufacturing lines
- High-resolution imaging in harsh and vibration-prone environments
| Model | HF50HA-1S |
| Compatible Sensor Size | 2/3" (6.2µm pixel pitch) |
| Resolution | 1.5 Megapixels |
| Focal Length | 50 mm |
| Iris Range (F. no.) | F2.3 to F22 (Manual) |
| Angle of View | 10.1° × 7.6° (2/3" sensor) |
| Working Distance | ∞ to 500 mm |
| Focus | Manual |
| Iris Control | Manual |
| TV Distortion | 0.06% |
| Filter Thread | M25.5 × 0.5 mm |
| Mount | C-Mount |
| Weight | 45 g |
| Dimensions (Ø × L) | 29.5 mm × 29.5 mm |
