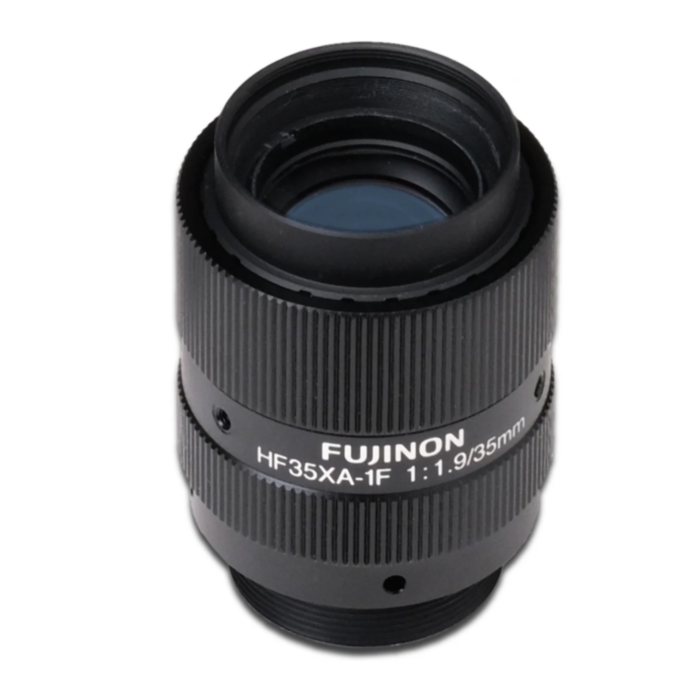

Fujinon HF35XA-1F | 1.2" 35mm 4D High Resolution Fixed Lens, 5MP, C-Mount, 3.45µm Pixel, Low Distortion 0.10%, Anti-Vibration IEC60068-2-6
The Fujinon HF35XA-1F is a high-performance 4D High Resolution (4DHR) C-mount lens engineered for industrial machine vision applications requiring exceptional optical consistency. Designed for 2/3" to 1/1.2" large-format image sensors, including the Sony IMX250 CMOS (5MP, 3.45µm pixel pitch), it delivers uniform sharpness from center to edge, minimizing resolution degradation caused by changes in aperture or working distance. With a fixed 35mm focal length, ultra-low 0.10% TV distortion, and high MTF performance, it ensures precise, repeatable imaging in demanding inspection, measurement, and automation environments.
Built to withstand shock and vibration per IEC60068-2-6 standards (10–60Hz, 0.75mm amplitude; 60–500Hz, 100m/s² acceleration), the HF35XA1F is optimized for reliable performance in harsh conditions. The lens supports multiple iris options (F1.9, F5.2, F10.4) to match diverse lighting and depth-of-field requirements, while its compact Φ34 × 50.3 mm housing and M25.5 x 0.5 filter thread make it ideal for integration into space-limited systems. Lightweight at just 75g, this precision optic is an optimal solution for high-speed, high-resolution imaging in production lines, robotics, and vision-based inspection systems.
Features:
- 4D High Resolution optical design for consistent sharpness across the frame
- Supports 2/3" to 1/1.2" sensors, including Sony IMX250 (5MP, 3.45µm)
- Low distortion: 0.10% TV distortion for precision imaging
- Multiple iris options: F1.9, F5.2, F10.4
- IEC60068-2-6 compliant anti-shock and anti-vibration design
- Fixed 35mm focal length for stable optical performance
- Compact size: Φ34 × 50.3 mm, lightweight at ~75g
- C-Mount with M25.5 x 0.5 filter thread
Applications:
- Machine vision inspection systems
- Industrial automation and robotics
- High-speed production line monitoring
- Optical metrology and measurement systems
- Electronics and PCB inspection
- Packaging and labeling verification
- Robotics vision guidance
- Scientific imaging and research
| Focal Length | 35mm |
| Iris Range (F.No) | F1.9, F5.2, F10.4 (interchangeable) |
| Angle of View (2/3") | 14.2° × 10.7° |
| Working Distance | ∞–200mm |
| Focus Operation | Fixed |
| Iris Operation | Fixed |
| Filter Thread | M25.5 x 0.5 |
| Mount | C-Mount |
| Weight | ~75g |
| Standard Sensor Size | 2/3" (3.45µm pixel pitch) |
| Maximum Sensor Size | 1/1.2" (4.5µm pixel pitch) |
| TV Distortion | 0.10% |
| Dimensions | Φ34 × 50.3 mm |
| Vibration Resistance | IEC60068-2-6 compliant (10–60Hz, 0.75mm amplitude; 60–500Hz, 100m/s²) |
