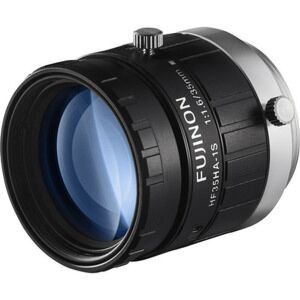

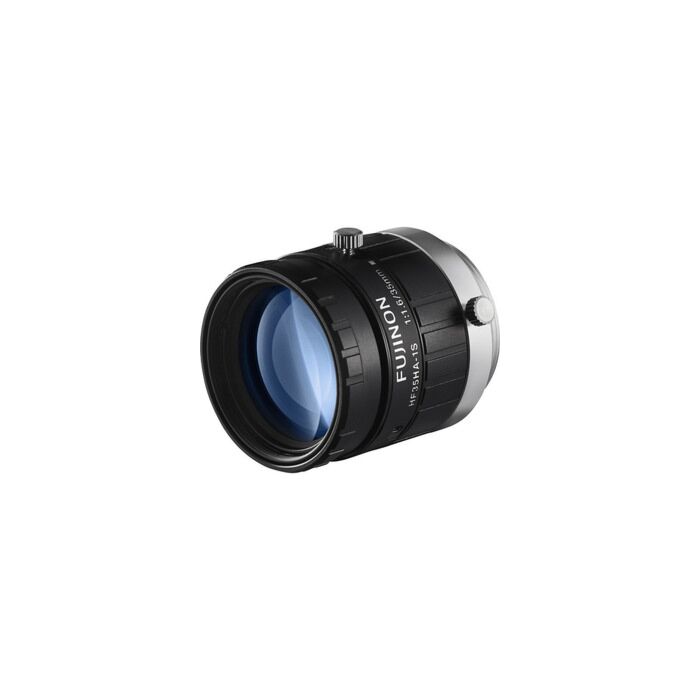

Fujinon HF35HA-1S | 2/3" 35mm High Resolution Fixed Lens, 1.5MP, C-Mount, 6.2µm Pixel, Vibration-Resistant, F1.6-F22, Low Distortion (0.10%)
The Fujinon HF35HA-1S is a precision-engineered, high-resolution fixed focal length lens optimized for 2/3" sensors with a 6.2µm pixel pitch, delivering 1.5MP-class imaging performance. With a focal length of 35mm, a wide iris range from F1.6 to F22, and a manual focus mechanism, it offers precise optical control and edge-to-edge clarity. The lens achieves an ultra-low TV distortion of just 0.10%, ensuring accurate reproduction of shapes and dimensions, making it ideal for machine vision inspection, measurement, and high-accuracy imaging systems.
Built with Fujifilm’s patented Anti Shock & Vibration Technology, the HF35HA1S withstands rigorous operating conditions, tolerating vibration frequencies from 10Hz–500Hz and acceleration forces up to 100 m/s² as per JIS C 60068-2-6 standards. Its robust C-mount interface, compact 29.5mm housing diameter, 40g lightweight construction, and M25.5 x 0.5 filter thread make it suitable for integration into space-limited industrial environments. With a working distance from infinity to 250mm and a 14.3° x 10.8° field of view (2/3" format), it is a versatile solution for high-precision imaging in robotics, automated inspection, and embedded vision applications.
Features:
- 35mm fixed focal length for 2/3" sensors
- Supports 6.2µm pixel pitch (1.5MP equivalent)
- Ultra-low TV distortion (0.10%) for accurate imaging
- Wide iris range: F1.6–F22 with manual control
- Manual focus for precise optical adjustments
- Vibration and shock resistant per JIS C 60068-2-6
- Compact 29.5mm housing, lightweight (40g)
- Standard C-mount with M25.5 x 0.5 filter thread
- Working distance: ∞ to 250mm
- Designed for industrial and machine vision use
Applications:
- Automated optical inspection (AOI)
- Robotics vision systems
- Industrial quality control
- High-precision measurement systems
- Embedded imaging modules
- Factory automation cameras
- Surface defect detection
- Dimensional and shape verification
- Microscopy and laboratory imaging
- Packaging and assembly line monitoring
| Focal Length | 35mm |
| Iris Range (F-No) | F1.6 – F22 |
| Angle of View (2/3") | 14.3° x 10.8° |
| Working Distance | ∞ – 250mm |
| Focus Operation | Manual |
| Iris Operation | Manual |
| Filter Thread | M25.5 x 0.5 |
| Mount | C-mount |
| Weight | 40g |
| Compatible Sensor Size (Std.) | 2/3" (6.2µm) |
| Compatible Sensor Size (Max.) | 2/3" (6.2µm) |
| TV Distortion | 0.10% |
| Dimensions | Φ29.5 × 29.5mm |
| Vibration Resistance | 10–60Hz (0.75mm amplitude), 60–500Hz (100 m/s²), 50 cycles |
