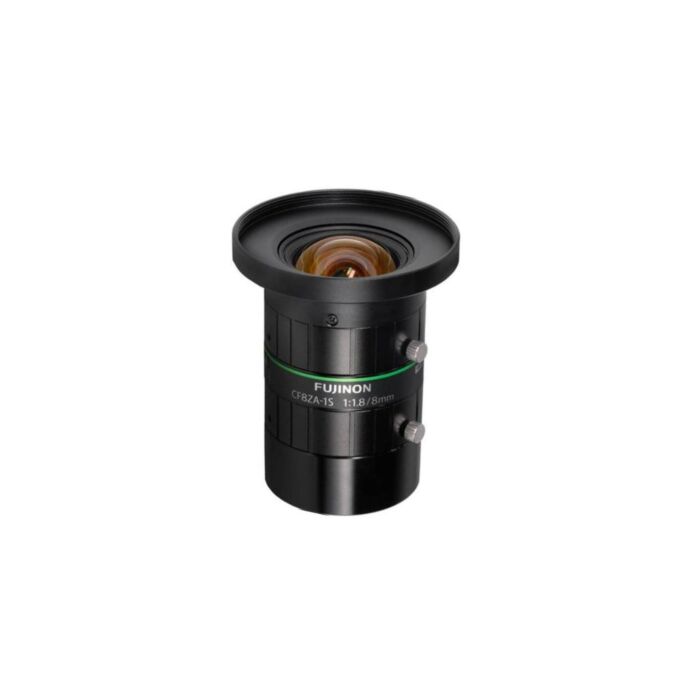

Fujinon CF8ZA-1S | 1.2" 8mm Fixed Lens, 24MP, C-Mount, 2.74µm Pixel, F1.8–F16, 85.7° HFOV, Low CRA 4.5°
The Fujinon CF8ZA-1S lens is engineered for high-resolution machine vision systems, supporting large 1.2" sensors with a 2.74µm pixel pitch equivalent to 24 megapixels, as well as 1.1" sensors with 2.5µm pixels (~23MP). Its advanced "4D High Resolution" optical design ensures consistent sharpness and high relative illumination over 90% across the entire image field, minimizing distortion with a chief ray angle (CRA) of only 4.5°. This lens optimizes performance on popular sensors like Sony IMX530, IMX253, IMX255, and IMX183, delivering crisp, low-noise images ideal for demanding inspection, robotics, and 3D scanning applications.
Built to withstand harsh industrial conditions, the CF8ZA1S includes vibration and impact resistance validated by JIS C 60068-2-6 testing, maintaining optical axis variation below 10µm even under 10G shock. Featuring manual iris control (F1.8–F16), internal focusing to preserve length, and a compact φ54mm diameter with M52 filter thread, this lens offers flexible mounting and reliable mechanical stability for precision imaging in compact machine vision setups.
Features:
- Supports large 1.2" (2.74µm pixel, 24MP) and 1.1" (2.5µm pixel, 23MP) sensors
- Fujifilm “4D High Resolution” optical design for uniform sharpness and >90% relative illumination
- Low chief ray angle (CRA) of 4.5° for minimal distortion
- Manual iris control with F1.8 to F16 range
- Internal focus mechanism maintains constant lens length during focusing
- Compact φ54mm diameter housing with M52 filter thread
- Vibration and impact resistant per JIS C 60068-2-6, optical axis variation <10µm under 10G shock
- Anti-separation structure on iris and focus screws to prevent detachment
- Manual focus and iris operation for precise control
- Triple positioning holes for flexible mounting and secure fixation
Applications:
- High-resolution machine vision inspection
- Robotics vision systems
- 3D scanning and metrology
- Industrial automation and quality control
- Semiconductor wafer inspection
- Electronics manufacturing
- Automotive vision inspection
- Precision measurement and defect detection
| Focal Length (mm) | 8 |
| Iris Range (F-Number) | F1.8 – F16 |
| Angle of View (HxV) | 85.7° × 67.5° |
| Working Distance | ∞ to 100 mm |
| Focus Operation | Manual (internal focus) |
| Iris Operation | Manual |
| Filter Thread | M52 x 0.75 |
| Mount Type | C-Mount |
| Sensor Size Supported | 1.2" (2.74µm pixel), 1.1" (2.5µm pixel) |
| Chief Ray Angle (CRA) | 4.5° |
| TV Distortion | -4.81% |
| Dimensions (Ø x L) | Ø54mm × 67mm |
| Weight | Approx. 180 g |
