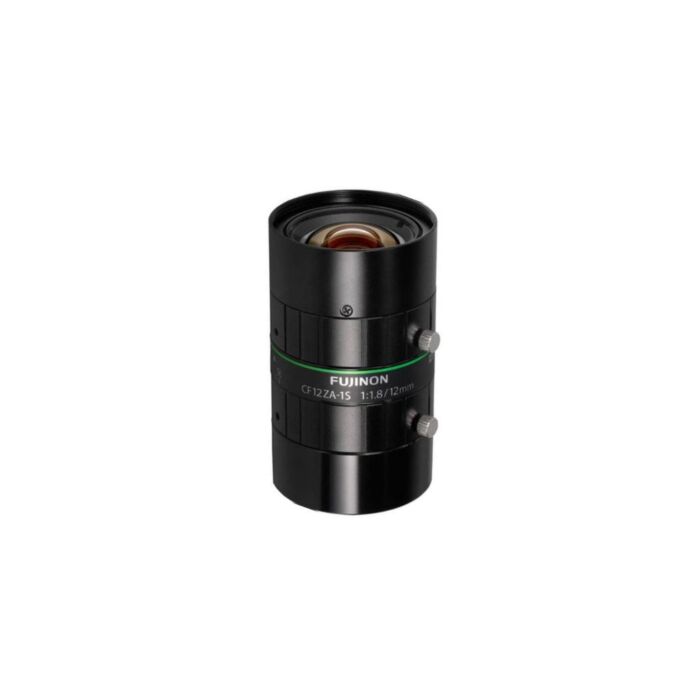

Fujinon CF12ZA-1S | 1.2" 12mm 4D High Resolution Fixed Lens, 24MP, C-Mount, 2.74µm Pixel, F1.8-F16 Iris
The Fujinon CF12ZA-1S (CF12ZA1S) lens is designed to maximize the performance of 1.2" type image sensors with a 2.74µm pixel pitch, delivering up to 24 megapixels of resolution with exceptional sharpness across the entire frame. It features FUJIFILM’s proprietary "4D High Resolution" optical technology, maintaining uniform high resolution and superior relative illumination above 90%, even at the periphery. With a low Chief Ray Angle of 4.5°, this lens ensures minimal distortion and bright, noise-free images without requiring post-correction, making it ideal for machine vision applications demanding high reliability and precision.
This lens supports sensors such as the Sony IMX530 (1.2"), IMX253 (1.1"), and IMX183 (1") and offers a 12mm focal length with a wide 62.5°×47.8° field of view. It includes a manual iris range from F1.8 to F16 and internal focusing to maintain lens length during operation. Built with FUJIFILM’s patented vibration- and impact-resistant mechanical design, it withstands shocks up to 10G and severe vibration testing per JIS standards, ensuring stable optical performance in harsh industrial environments. The compact φ39mm diameter and 180g weight allow for easy integration in space-constrained setups.
Features:
- Supports 1.2" sensor with 2.74µm pixel pitch (24MP)
- FUJIFILM 4D High Resolution optical design for uniform sharpness
- Relative illumination >90%, low Chief Ray Angle (4.5°)
- Manual iris control F1.8–F16 with internal focus mechanism
- Compact φ39mm diameter, lightweight (180g)
- Vibration and impact resistant, withstands 10G shocks (JIS C 60068-2-6)
- C-mount interface for easy camera integration
- Anti-separation iris and focus screws for durability
- QR code factory calibration report for quality assurance
Applications:
- High-precision machine vision inspection
- Robot vision systems and 3D scanning
- Semiconductor wafer inspection
- Quality control in manufacturing lines
- Scientific imaging requiring high resolution
- Industrial automation cameras
- Compact camera retrofits requiring large sensor support
| Focal Length | 12 mm |
| Sensor Size (Standard) | 1.1" (2.5µm), 1.2" (2.74µm) |
| Maximum Sensor Size | N/A |
| Pixel Pitch | 2.74 µm |
| Resolution | Up to 24 Megapixels |
| Iris Range (F-number) | F1.8 – F16 (Manual) |
| Angle of View | 62.5° (H) × 47.8° (V) |
| Chief Ray Angle (CRA) | 4.5° |
| TV Distortion | -2.82% |
| Focus Operation | Manual, Internal Focus (Fixed Length) |
| Iris Operation | Manual |
| Filter Thread | M37.5 × 0.5 mm |
| Mount | C-Mount |
| Dimensions (Diameter × Length) | φ39 mm × 67.6 mm |
| Weight | Approx. 180 g |
| Vibration Resistance | Complies with JIS C 60068-2-6, withstands 10G shock |
