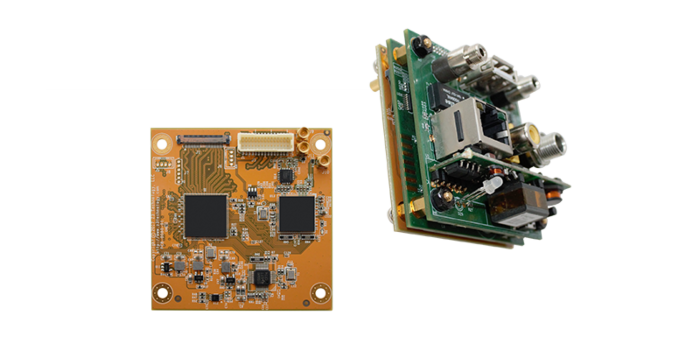

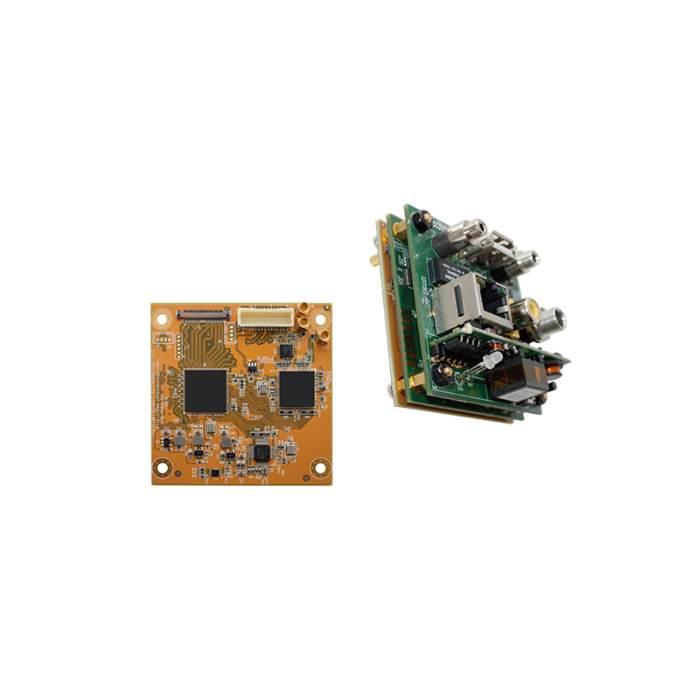

Z3 Technology FSDI-DCK-1X Full HD Dual Camera SDI Video Encoder
The FSDI-DCK-1X encoder input board delivers flexible digital and analog inputs for simultaneous dual-camera video streaming and recording. Designed and manufactured in the USA, this compact, low-power encoder supports both H.265 and H.264 video compression for efficient real-time performance while consuming only 4.5 watts when streaming from two cameras.
Engineered for professional and industrial integration, the FSDI-DCK-1X supports SDI, LVDS, and composite camera interfaces, allowing developers to easily connect a wide range of imaging systems. Its flexible configuration enables streaming over IP while simultaneously recording to USB or microSD storage.
With NDAA compliance and ONVIF Profile S compatibility, the FSDIDCK1X provides secure, standards-based operation for government, defense, surveillance, and industrial imaging applications. Available with preloaded software or as part of an SDK starter kit, this board is optimized for rapid deployment and development flexibility.
Features:
- H.265/H.264 Dual Camera Video Streaming
- Interfaces with SDI, LVDS and Composite cameras
- Programmable to support a variety of cameras
- High-Quality Low Latency Encoding Pass Camera Control Commands over IP
- ONVIF Profile S Compliant
Applications:
- Dual Camera Inspection
- Surveillance
- Industrial
- UAV
| Module Size | 58 x 58 mm (2.28 x 2.28 in) |
| Typical Power Consumption | 4.5W typical while encoding 2 cameras in H.265 video at 1080p60 |
| Certifications | Onvif Profile S Compliant |
