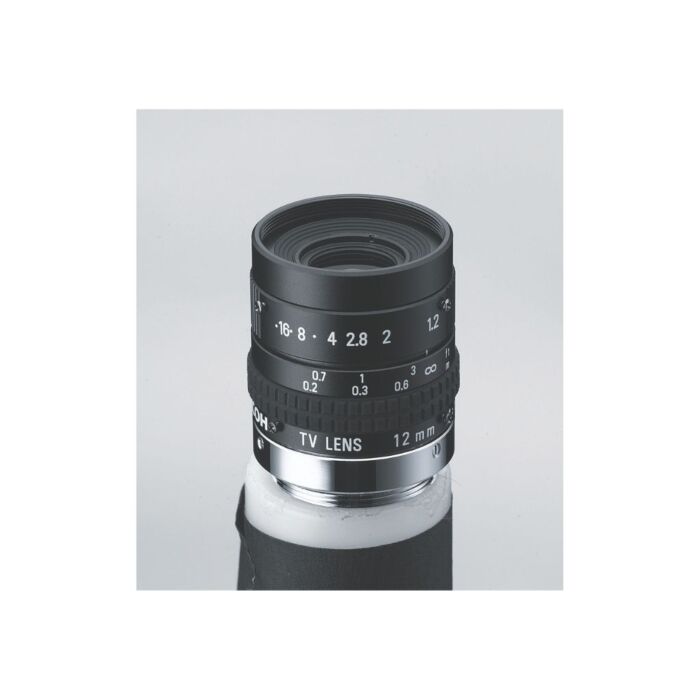

OPTOWL FL-HC1212B-VG | 1/2" 12mm VGA Manual Iris Lens
Ricoh FL-HC1212B-VG: Versatile Machine Vision Lens for Precision and Performance
The Ricoh FL-HC1212B-VG lens is an essential tool designed to elevate machine vision systems across a range of industrial applications. Engineered with precision and flexibility in mind, this lens is ideal for enhancing the accuracy and efficiency of your visual inspection processes. Its robust construction and advanced optical design make it a go-to solution for various machine vision tasks, from intricate component positioning to high-speed production line inspections.
The FL-HC1212B-VG is compatible with VGA-class cameras, offering seamless integration with existing setups. It supports a wide array of sensor sizes, handling camera formats from 1/2" to 1" with ease. The lens features standard lock screws, which provide essential vibration control to ensure consistent imaging performance even in dynamic environments.
This lens excels in a multitude of applications, making it a versatile choice for industries requiring high precision and reliability. Whether you're performing pattern matching, inspecting pharmaceuticals, or ensuring the quality of produce and grains, the Ricoh FL-HC1212B-VG delivers sharp, clear images that enhance your inspection capabilities. Its ability to handle demanding tasks like missing-part inspection and board mounting ensures that you can rely on it for critical quality control processes.
In summary, the Ricoh FL-HC1212B-VG lens is a high-performance solution for diverse machine vision applications, offering both versatility and reliability to meet the rigorous demands of modern industrial environments.
Features:
- Standard lenses for machine vision use
- Compatible with VGA-class cameras
- Production line handling cameras from 1/2" to 1" formats
- Lock screws as standard vibration-control measures
Applications:
- pattern matching
- component positioning
- missing-part inspection
- board mounting
- inspection of pharmaceuticals
- produce
- grains
| Format size | 1/2, 1/3" format |
| Focal length | 12 mm |
| Maximum aperture ratio | 1:1.2 |
| Iris range | Manual |
| Iris Type | Manual |
| Mount | C |
| Horizontal Angle of View - 1/4" format | 16.9° |
| Horizontal Angle of View - 1/3" format | 22.6° |
| Horizontal Angle of View - 1/2" format | 30.2° |
| Minimum object distance | 0.2 m |
| Back focal length | 13.87 mm |
| Filter size | 27 P=0.5 mm |
| Dimensions | φ30x35.5 mm |
| Weight | 67 g |
| Remarks | Focus & Iris lock screws |
| Resolution | VGA |
