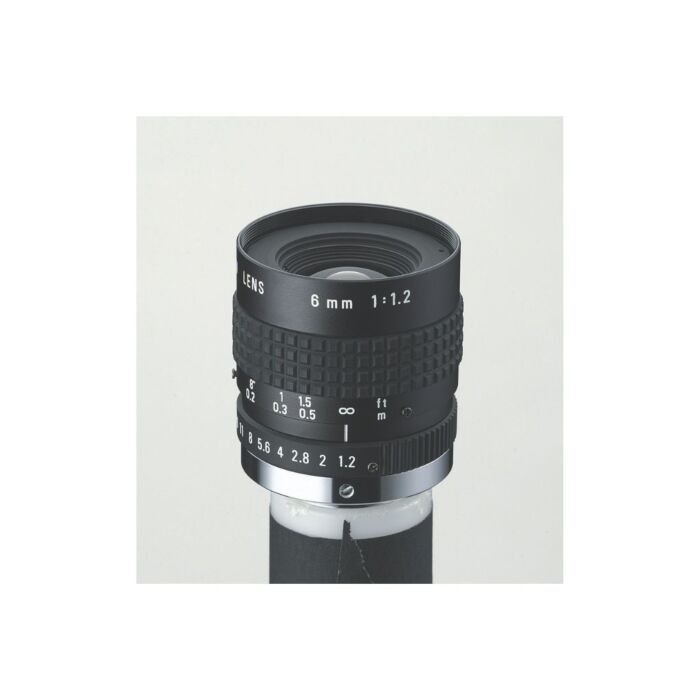

OPTOWL FL-HC0612A-VG | 1/2" 6mm VGA Manual Iris Lens
RICOH FL-HC0612A-VG: High-Performance VGA Manual Iris Lens for Machine Vision
The RICOH FL-HC0612A-VG is a premier choice for machine vision applications, offering exceptional quality and versatility with its 1/2" 6mm VGA manual iris lens. Engineered for precision and reliability, this lens is designed to meet the demanding needs of various industrial and machine vision systems. Its advanced optical technology ensures sharp, clear imaging, which is crucial for accurate inspections and monitoring in automated environments.
Part of RICOH’s extensive line of general-use lenses, the FL-HC0612A-VG excels in performance, featuring state-of-the-art vibration control measures that significantly reduce image distortion caused by vibrations. This feature is particularly beneficial in high-speed production lines and dynamic settings where stability is crucial. The lens is compatible with VGA-class cameras and supports a wide range of formats, accommodating sensors from 1/2" to 1" in size. Its manual iris adjustment allows for precise control over exposure, enhancing the lens's adaptability to varying lighting conditions and operational requirements.
Features:
- Standard lenses for machine vision use
- Compatible with VGA-class cameras
- Production line handling cameras from 1/2" to 1" formats
- Lock screws as standard vibration-control measures
Applications:
- pattern matching
- component positioning
- missing-part inspection
- board mounting
- inspection of pharmaceuticals
- produce
- grains
| Format size | 1/2, 1/3" format |
| Focal length | 6 mm |
| Maximum aperture ratio | 1:1.2 |
| Iris range | 1.2-Close |
| Mount | C |
| Horizontal Angle of View - 1/4" format | 33.0° |
| Horizontal Angle of View - 1/3" format | 43.5° |
| Horizontal Angle of View - 1/2" format | 56.9° |
| Minimum object distance | 0.2 m |
| Back focal length | 14.31 mm |
| Filter size | 40.5 P=0.5 mm |
| Dimensions | φ42x46 mm |
| Weight | 125 g |
| Remarks | Focus & Iris lock screws |
