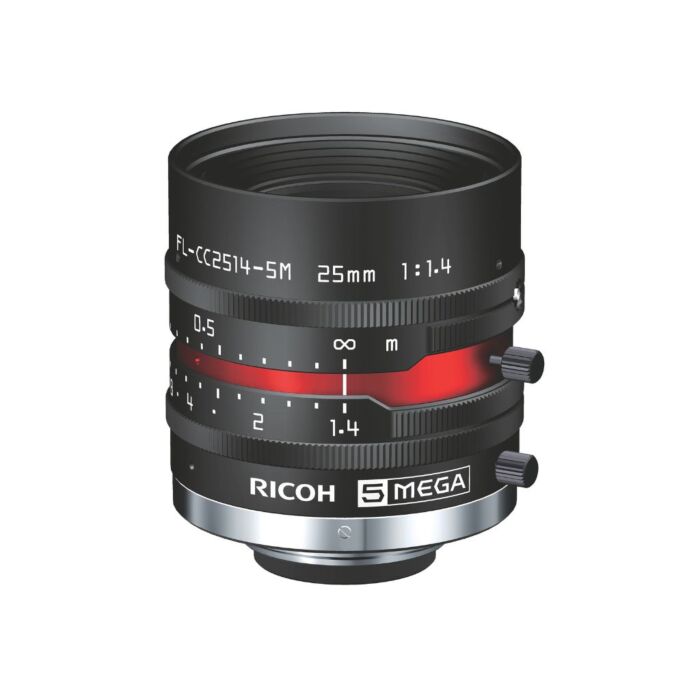

OPTOWL FL-CC2514-5M | 2/3" 5MP 25mm Manual Iris Lens

FL-CC2514-5M: Superior High-Resolution Machine Vision Lens

The FL-CC2514-5M lens is an exceptional choice for professionals seeking top-tier performance in machine vision applications. Designed for use with 5-megapixel resolution and image processing equipment, this FA lens excels in delivering high-resolution and high-contrast images, making it ideal for demanding industrial environments.

Engineered to support 2/3" format, 5-megapixel CCD cameras with a 3.45μm pixel pitch, the FL-CC2514-5M lens achieves an impressive 140 lp/mm high resolution from the center to the periphery. This ensures that your images remain sharp and clear across the entire frame, with minimal loss of resolution and excellent contrast. Whether you're working with wafers, chip mounters, or board mounting processes, this lens provides the clarity and precision required for accurate image analysis and processing.

One of the standout features of the FL-CC2514-5M is its compact design. With an outer diameter of just Φ43 mm, it perfectly complements the 44 mm-square cases used by many 5-megapixel cameras. This compact size allows for easy installation on high-performance devices without sacrificing image quality.

The FL-CC2514-5M lens also boasts an extremely low level of optical distortion. Diagonal optical distortion is kept under 1%, while TV distortion is less than 0.2%. This low distortion is particularly beneficial for applications in the image measurement field, where precision is paramount.

In addition to its high-resolution capabilities, the FLCC25145M is designed to maintain brightness across the entire image. Despite its small size, the lens accommodates 5-megapixel resolution with an F1.4 aperture, minimizing peripheral light falloff. Even in wide-angle configurations, the lens achieves a peripheral light level of 70% (diagonals) with the iris open, ensuring bright and clear images from the center to the edges.

Features:

• High Resolution and Contrast: Supports 2/3" format, 5-megapixel CCD cameras with a 3.45μm pixel pitch. Achieves 140 lp/mm resolution across the frame.
• Compact Design: Outer diameter of Φ43 mm, suitable for 44 mm-square cases, perfect for high-performance devices.
• Low Optical Distortion: Less than 1% distortion on diagonals and under 0.2% TV distortion, ideal for precision image measurement.
• Bright to the Periphery: F1.4 aperture maintains brightness with minimal peripheral light falloff, even at wide angles.

Applications:

• wafers
• chip mounters
• board mounting
