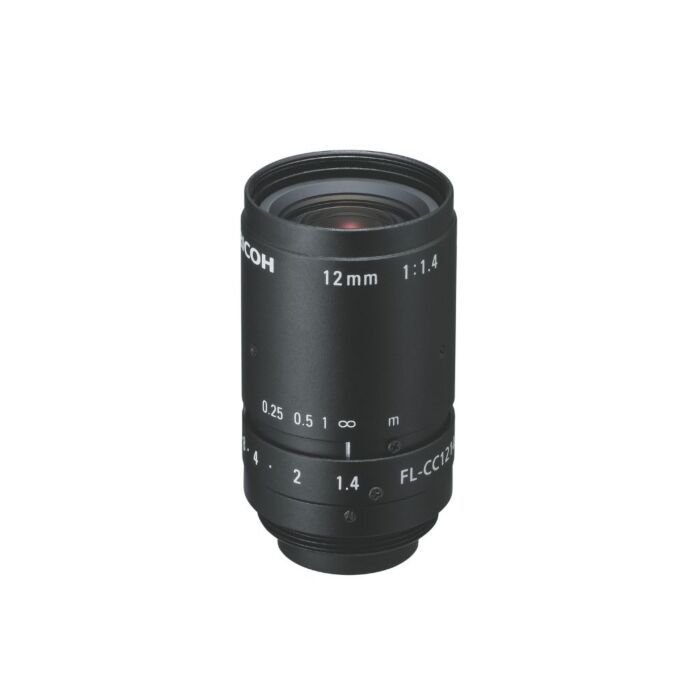

OPTOWL FL-CC1214A-2M | 2/3" 2MP 12mm Manual Iris Lens
SKU
FL-CC1214A-2M
Quick Overview
The RICOH Lens FL-CC1214A-2M F1.4 f12mm 2/3" has a C mount thread and a min. distance of 100mm.
The OPTOWL FL-CC1214-2M (FLCC12142M) is a Fixed focal length lens, high-resolution, compact Megapixel lens, with locking screws for C- and CS-Mount cameras.
Features:
- High-performance lenses for close-up imaging with 2 mega-pixel CCD and CMOS sensors
- Sharp high resolution, high contrast images, that limit resolution loss from the center to periphery
- With compact size, light weight, and durability, these are excellent lenses for FA and machine vision use
- They greatly reduce distortion that causes problems in image measurement and recognition
- Built to handle environments with vibration, etc. Easy to use, reliable focus and iris locking mechanisms as standard features
Applications:
- High-Precision Manufacturing Inspection
- Machine Vision
- Defect Detection
| Format | 1/2" |
| Mount | C |
| Focal Length | 12.0mm |
| Iris Range | F1.4 - 16 |
| Iris Type | Manual |
| Focus Control | Manual |
| Horizontal Angle Of View | 28.9° |
| Minimum Object Distance | 0.25m |
| Filter Size in MM | 27 x 0.5 |
| Dimensions in mm | 29.5 x 28.5 |
| Weight | 55g |
| Temperature range | -20°C to 50°C |
| Comment | Diameter 29,5mm, KP: 3 lock screws each for aperture and focus plus 2 thumbed screws in the additional packaging; old part no.: C61232KP/H1214-M (KP) |
