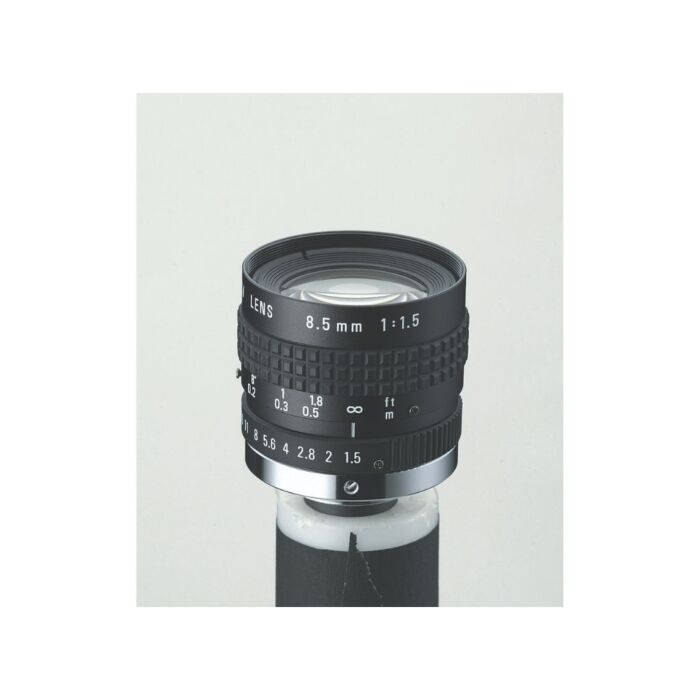

OPTOWL FL-CC0815B-VG | 2/3" VGA 8.5mm Manual Iris Lens
FL-CC0815B-VG: Versatile Machine Vision Lens for Precision Applications
The FL-CC0815B-VG lens is engineered to meet the rigorous demands of various machine vision applications, offering exceptional clarity and performance. Designed to be a reliable solution for industrial settings, this lens is compatible with VGA-class cameras and supports a wide range of sensor sizes, from 1/2" to 1". Its standard lens design is tailored for machine vision systems, making it ideal for tasks requiring precise image capture and analysis.
Built with vibration-control measures, the FL-CC0815B-VG features lock screws that enhance stability and reduce image distortion caused by vibrations. This makes it particularly effective for high-speed production lines where maintaining image quality is crucial. The lens's robust construction and adaptability ensure it performs well in various environments, including those with challenging lighting conditions or rapid movement.
Applications of the FL-CC0815B-VG lens include pattern matching, where its high resolution aids in identifying and comparing patterns with accuracy. It is also excellent for component positioning, ensuring that parts are correctly aligned in automated systems. The lens is ideal for missing-part inspection, enabling quick detection of absent components on assembly lines. In board mounting and inspection of pharmaceuticals, its precision supports quality control and regulatory compliance. Additionally, it is well-suited for inspecting produce and grains, providing clear, detailed images for sorting and quality assessment.
The FLCC0815BVG lens stands out for its versatility and reliability, making it a valuable component in any machine vision system. Whether used in pattern recognition, quality inspection, or production line monitoring, this lens delivers the performance needed to achieve accurate and efficient results.
Features:
- Standard lenses for machine vision use
- Compatible with VGA-class cameras
- Production line handling cameras from 1/2" to 1" formats
- Lock screws as standard vibration-control measures
Applications:
- pattern matching
- component positioning
- missing-part inspection
- board mounting
- inspection of pharmaceuticals
- produce
- grains
| Format size | 2/3, 1/2, 1/3" format |
| Focal length | 8.5 mm |
| Maximum aperture ratio | 1:1.5 |
| Iris range | 1.5-Close |
| Mount | C |
| Horizontal Angle of View - 1/4" format | 24.0° |
| Horizontal Angle of View - 1/3" format | 31.9° |
| Horizontal Angle of View - 1/2" format | 42.1° |
| Horizontal Angle of View - 2/3" format | 56.5° |
| Minimum object distance | 0.2 m |
| Back focal length | 10.88 mm |
| Filter size | 40.5 P=0.5 mm |
| Dimensions | φ42x40 mm |
| Weight | 120 g |
| Remarks | Focus & Iris lock screws |
