OPTOWL FL-BC5014A-VG | 50mm VGA Manual Iris Lens

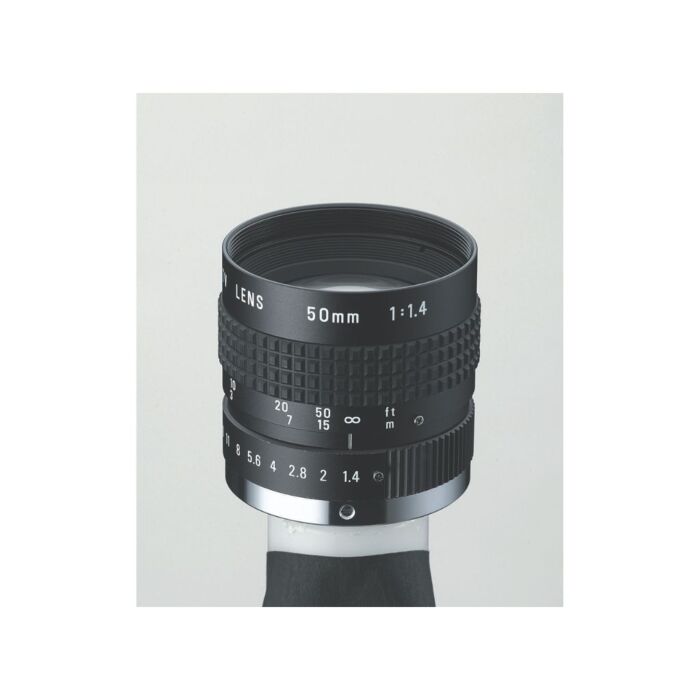

FL-BC5014A-VG: High-Performance Machine Vision Lens by Ricoh
The FL-BC5014A-VG from Ricoh is a cutting-edge lens designed specifically for machine vision applications, ensuring exceptional clarity and precision. As part of Ricoh's renowned VGA lens series, the FL-BC5014A-VG excels in delivering high-quality imaging for a variety of industrial and inspection tasks. Engineered for use with VGA-class cameras, this lens is versatile enough to handle production line cameras with sensor formats ranging from 1/2" to 1".
One of the standout features of the FL-BC5014A-VG is its integration of standard lenses tailored for machine vision applications. These lenses are optimized to provide sharp, accurate imaging crucial for detailed inspections and pattern recognition. Additionally, the lens includes lock screws that serve as standard vibration-control measures, ensuring stability and minimizing image distortion during operation. This feature is particularly valuable in high-speed production environments where vibration can compromise image quality and system performance.
The FL-BC5014A-VG lens is well-suited for various applications, including pattern matching, component positioning, missing-part inspection, and board mounting. It is also ideal for inspecting pharmaceuticals, produce, and grains, making it a versatile tool in both manufacturing and quality control processes. With its robust design and precision optics, the FL-BC5014A-VG is an excellent choice for industries requiring reliable and high-performance machine vision solutions.
By choosing the FL-BC5014A-VG, you are investing in a lens that enhances the accuracy and efficiency of your machine vision systems, ensuring optimal performance across a wide range of applications.
Features:
- Standard lenses for machine vision use
- Compatible with VGA-class cameras
- Production line handling cameras from 1/2" to 1" formats
- Lock screws as standard vibration-control measures
Applications:
- pattern matching
- component positioning
- missing-part inspection
- board mounting
- inspection of pharmaceuticals
- produce
- grains
| Format size | 1, 2/3, 1/2, 1/3" format |
| Focal length | 50 mm |
| Maximum aperture ratio | 1:1.4 |
| Iris range | 1.4-Close |
| Mount | C |
| Horizontal Angle of View - 1/4" format | 4.1° |
| Horizontal Angle of View - 1/3" format | 5.5° |
| Horizontal Angle of View - 1/2" format | 7.3° |
| Horizontal Angle of View - 2/3" format | 10.0° |
| Horizontal Angle of View - 1" format | 14.4° |
| Minimum object distance | 1.0 m |
| Back focal length | 18.05 mm |
| Filter size | 46 P=0.75 mm |
| Dimensions | φ48x48 mm |
| Weight | 180 g |
| Remarks | Focus & Iris lock screws |
