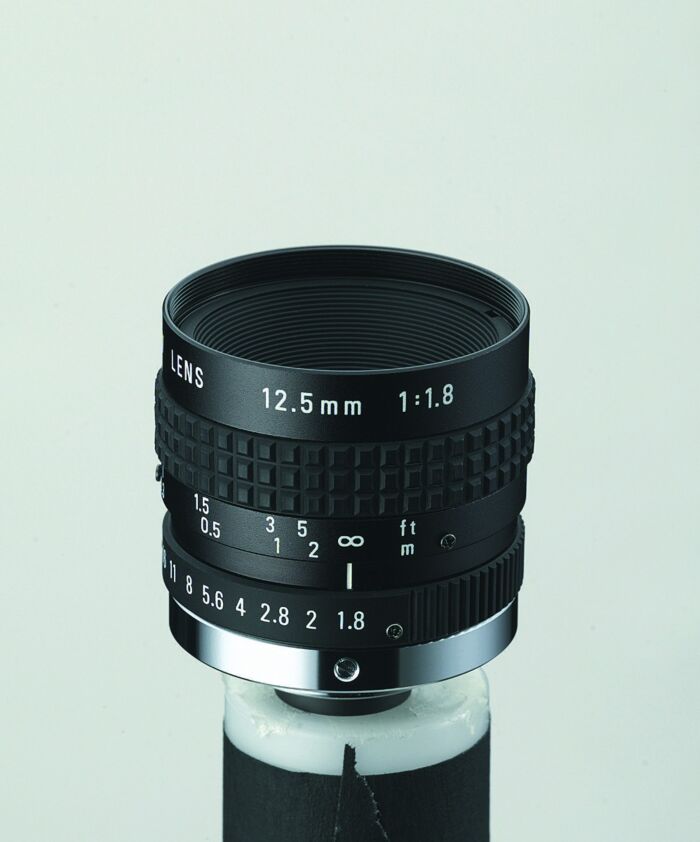

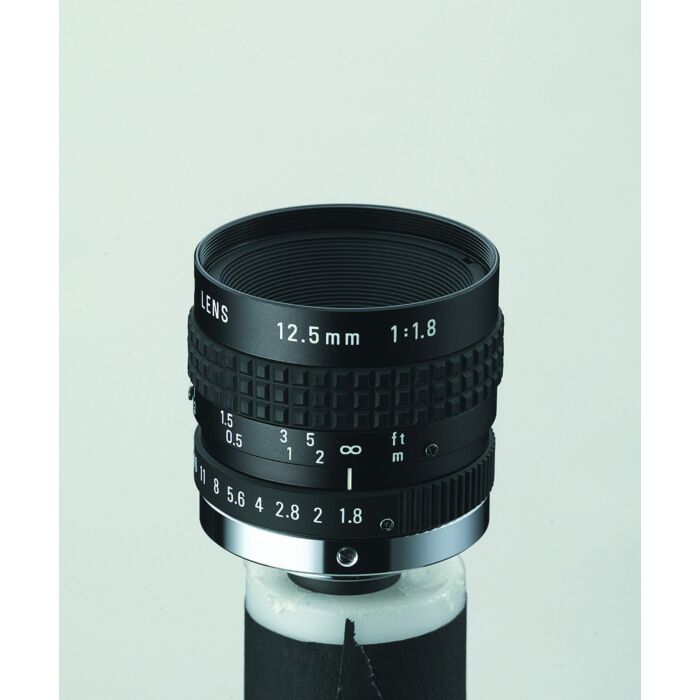

OPTOWL FL-BC1218A-VG | 1" 12.5mm VGA Manual Iris Lens
FL-BC1218A-VG: Precision Lens for Machine Vision Applications
The FL-BC1218A-VG lens is engineered to meet the demands of precision machine vision applications. Designed for compatibility with VGA-class cameras, this high-quality lens supports a range of sensor formats from 1/2" to 1", making it a versatile choice for various industrial needs. Its 12.5 mm focal length and maximum aperture ratio of 1:1.8 ensure exceptional image clarity and detail, while the built-in locking screws offer superior vibration control, maintaining image stability even in dynamic environments.
The FLBC1218AVG is ideal for tasks such as pattern matching, component positioning, and inspection in production lines and quality control processes. Its robust construction and precision engineering make it a reliable choice for inspecting pharmaceuticals, produce, and grains, providing clear and accurate imaging in demanding conditions.
Features:
- Standard machine vision lens designed for reliable image capture
- Compatible with VGA-class cameras and sensor formats from 1/2" to 1"
- Locking screws for enhanced vibration control and stability
- Wide focal length range of 12.5 mm for versatile application use
- Durable construction with focus and iris lock screws
Applications:
- Pattern matching
- Component positioning
- Missing-part inspection
- Board mounting
- Inspection of pharmaceuticals, produce, and grains
| Format size | 1, 2/3, 1/2, 1/3" format |
| Focal length | 12.5 mm |
| Maximum aperture ratio | 1:1.8 |
| Iris range | 1.8-Close |
| Mount | C |
| Horizontal Angle of View - 1/4" format | 16.5° |
| Horizontal Angle of View - 1/3" format | 22.0° |
| Horizontal Angle of View - 1/2" format | 29.1° |
| Horizontal Angle of View - 2/3" format | 39.6° |
| Horizontal Angle of View - 1" format | 55.5° |
| Minimum object distance | 0.3 m |
| Back focal length | 10.36 mm |
| Filter size | 40.5 P=0.5 mm |
| Dimensions | φ42x40 mm |
| Weight | 95 g |
| Remarks | Focus & Iris lock screws |
