OPTOWL FL-BC1214D-VG | 1" 12.5mm VGA Manual Iris Lens

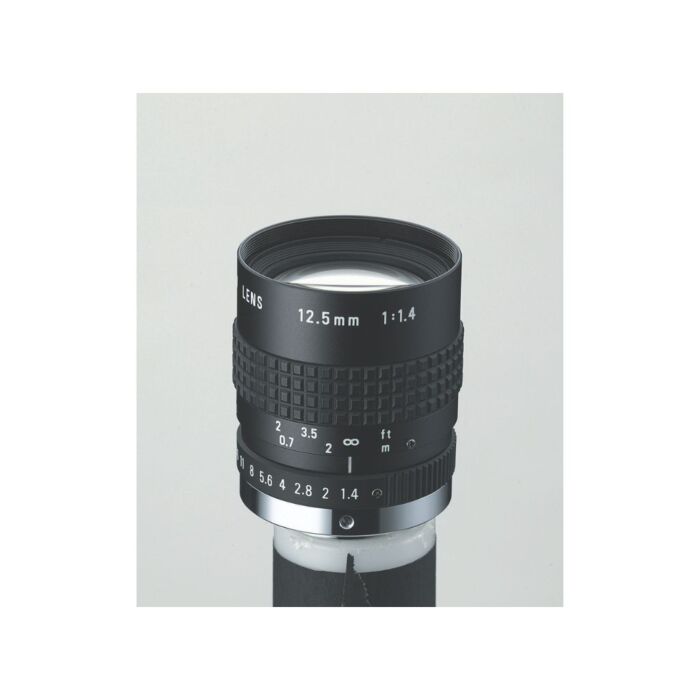

FL-BC1214D-VG Ricoh VGA Lens - Precision Optics for Machine Vision
The FL-BC1214D-VG is a standout lens within Ricoh's highly-regarded VGA Lens series, meticulously crafted to meet the rigorous demands of modern machine vision systems. With a focal length of 12.5mm and a maximum aperture ratio of 1:1.4, this lens is engineered to deliver exceptional image clarity, making it an ideal choice for applications requiring high precision and reliability. Whether you’re working with VGA-class cameras in manufacturing, quality control, or inspection processes, the FL-BC1214D-VG offers unparalleled performance.
Designed to support a wide range of sensor formats, from 1/3" to 1", this lens ensures compatibility across various camera setups, making it a versatile tool in any industrial environment. Its robust construction includes a manual iris with locking screws, providing reliable and consistent performance, even in high-vibration settings typical of industrial operations. This feature ensures that once the focus and aperture settings are locked, they remain fixed, thereby preventing any potential shifts during intensive use.
In addition to its technical excellence, the FLBC1214DVG is optimized for tasks such as pattern matching, component positioning, and inspection of various materials, including pharmaceuticals and produce. Its compact design, with dimensions of φ42x50 mm and a weight of just 135g, allows for easy integration into existing systems without adding unnecessary bulk.
Features:
- Standardized Lens Design: Optimized for machine vision, ensuring compatibility with VGA-class cameras.
- Wide Format Compatibility: Supports a range of sensor sizes, from 1/3" to 1", delivering versatility across various setups.
- Vibration-Resistant: Equipped with lock screws for both focus and iris, providing reliable stability in challenging environments.
- High Aperture Ratio: The 1:1.4 aperture ratio allows for excellent light transmission and image clarity.
Applications:
- Pattern matching for automated quality control
- Precision component positioning in assembly lines
- Inspection of missing parts in high-speed production
- Board mounting verification
- Pharmaceutical inspection for quality assurance
- Produce and grain quality checks
| Format size | 1, 2/3, 1/2, 1/3" format |
| Focal length | 12.5 mm |
| Maximum aperture ratio | 1:1.4 |
| Iris range | 1.4-Close |
| Mount | C |
| Horizontal Angle of View - 1/4" format | 16.1° |
| Horizontal Angle of View - 1/3" format | 21.4° |
| Horizontal Angle of View - 1/2" format | 28.4° |
| Horizontal Angle of View - 2/3" format | 38.5° |
| Horizontal Angle of View - 1" format | 53.7° |
| Minimum object distance | 0.3 m |
| Back focal length | 14.40 mm |
| Filter size | 40.5 P=0.5 mm |
| Dimensions | φ42x50 mm |
| Weight | 135 g |
| Remarks | Focus & Iris lock screws |
