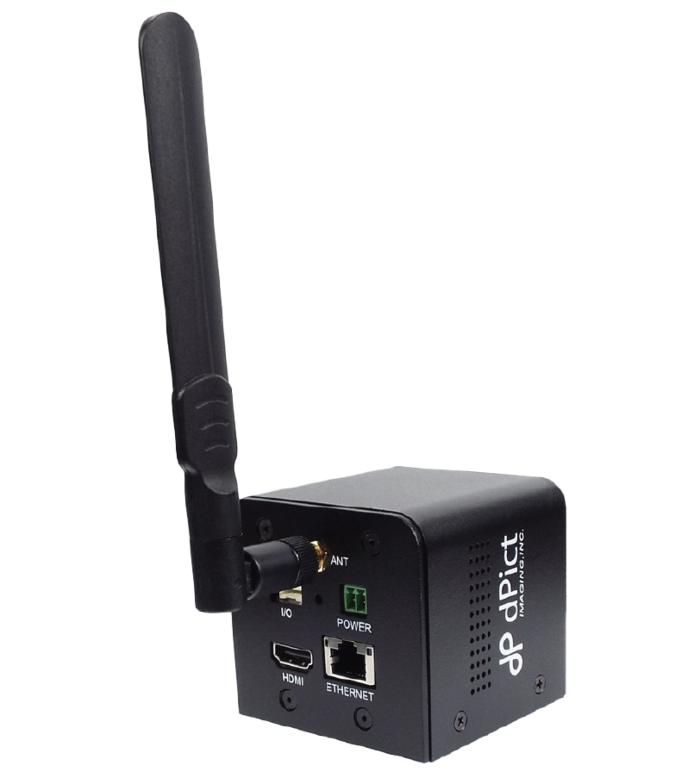

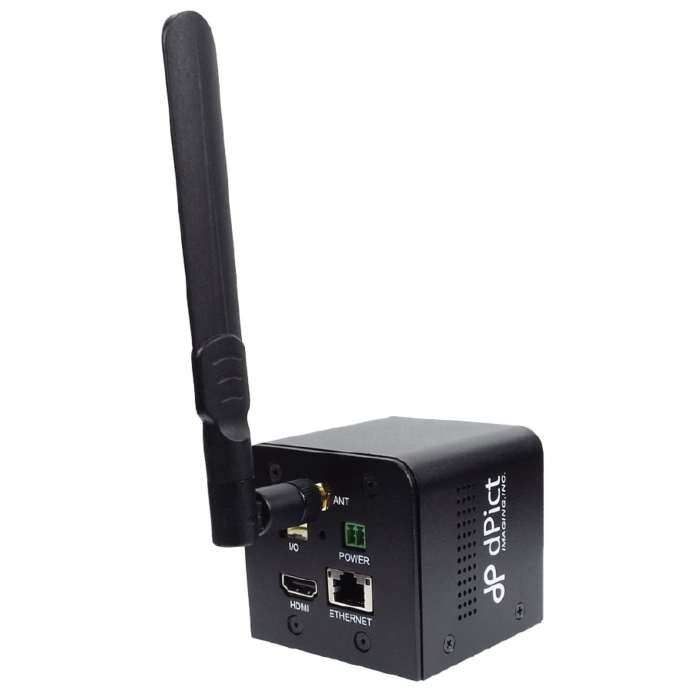

dPict DP-810 Cube 4K Video IP Encoder
SKU
DP-810 Cube
Quick Overview
Compact 4K encoder for HDMI/VGA input with Ethernet and optional WiFi streaming, supporting ONVIF and secure transmission.
The DP-810 Cube is a compact, low-power Linux-based system designed for high-quality video encoding and IP streaming up to 4K resolution. Supporting HDMI and VGA inputs, it delivers efficient HEVC (H.265) and H.264 encoding over Ethernet or optional WiFi, making it ideal for OEM integration and ONVIF-compliant applications worldwide.
Features:
- HDMI video input up to 4K30p
- HEVC (H.265) and H.264 encoding
- Integrated EDID for VGA graphics streaming
- Gigabit Ethernet (10/100/1000)
- RTSP with authentication
- HDMI preview output
- Optional 802.11ac WiFi with WPA2-Enterprise security
- Video buffer for stable transmission
- ONVIF Profile S support
- HTTP web-based configuration
- Optional extended temperature range
- POE optional
- Mounting hardware available
Applications:
- Broadcast streaming
- Security monitoring
- Industrial automation
- Remote conferencing
- Medical imaging
| Video Input | HDMI 1.4b |
| Encoding Formats | HEVC (H.265), H.264 |
| Resolution | Up to 4K30p |
| Operating Temperature | -25°C to 85°C |
| Dimensions (WxHxD) | 65mm x 67mm x 70mm |
| Power Requirement | 12V DC, 5W |
| Connectors | Video: HDMI (2) Communication: Molex 503148 Ethernet: RJ45 Power: Wurth 2 POS 3.5mm |
