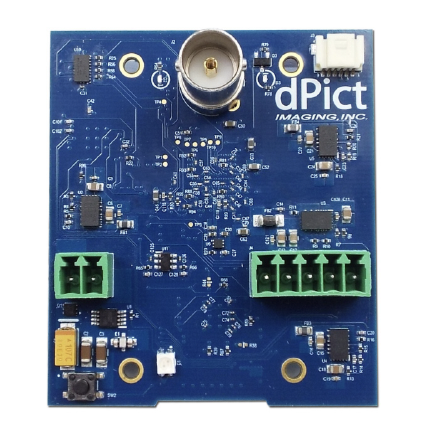

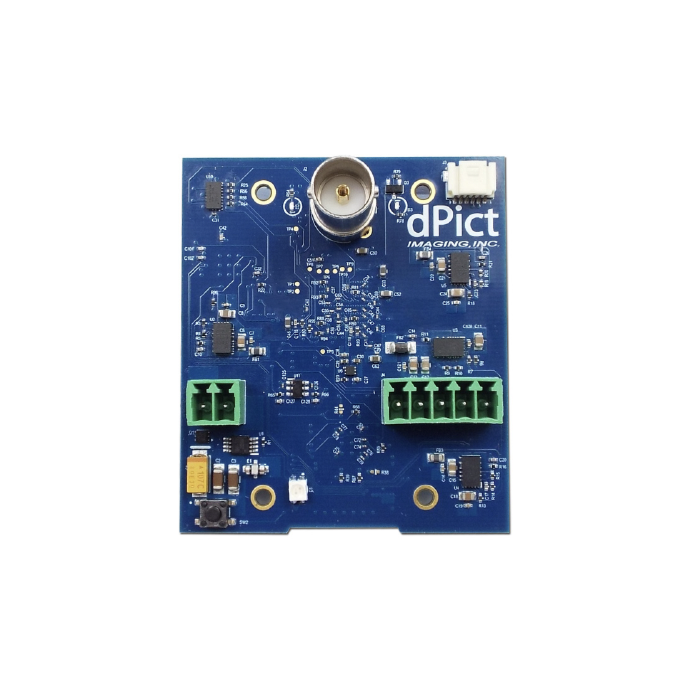

dPict DP-801S 4K60p 12GSDI Interface Board for Sony 4K Block Cameras, SMPTE ST 2082, Direct 30-Pin Connection, VISCA Control, 63x54mm, -40°C to 85°C

4K-12G SDI Interface Boards, such as the dPict DP-801S, offer real-time, uncompressed 4K60p video transmission using the SMPTE ST 2082-1 standard over a single coaxial cable. These high-performance boards are optimized for integration with Sony 4K FCB block cameras via a direct 30-pin connection, providing seamless camera-to-output functionality without the need for additional adapters. Supporting 3840 x 2160 resolution at 60 fps with ultra-low latency, they’re ideal for high-resolution imaging across broadcast, industrial, and medical applications.

With built-in down-conversion capabilities to 6G-SDI and 3G-SDI, these boards support flexible video output formats for hybrid and legacy systems. Compact board dimensions (e.g., 63 x 54 mm), wide operating temperatures from -40°C to 85°C, and VISCA serial control support make them well-suited for rugged and embedded use cases, including machine vision, UAV systems, robotic inspection, and surgical imaging. Whether upgrading to 12G-SDI or maintaining backward compatibility, interface boards like the DP-801S deliver robust, future-ready video output.

Features:

• Supports Sony FCB-ER9500, EW9500H, ES8230, ER8300, ER8530, ER8550 cameras
• Real-time 4K UHD-SDI output up to 3840x2160 @ 60fps (4K60p)
• SMPTE ST 2082 (12G) single-link SDI compliant
• Direct 30-pin Sony Data I/O connector interface
• Integrated 12V power (3.5W) and VISCA camera control
• Automatic resolution detection and infoframe/PID/ANC insertion
• Operating temperature range: -40°C to 85°C
• Compact dimensions: 63mm x 54mm
• BNC connector for SDI video output; Wurth 3.5mm connectors for power and communication

Applications:

• High-resolution broadcast and live streaming video systems
• Industrial machine vision and automated inspection
• Security and surveillance systems requiring 4K video
• Integration into Sony 4K block camera setups for SDI output
• Professional video production requiring low-latency 4K60p feeds
• Rugged environments needing wide temperature operation
