dPict Imaging 10042-001 Aexeon HDS PCI Frame Grabber
Enhanced Video Capture with Aexeon HDS PCI Frame Grabber

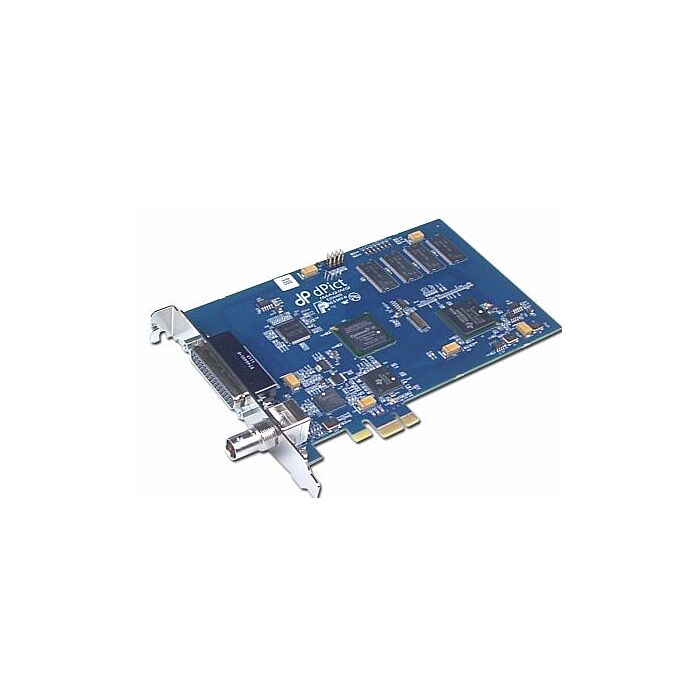

Aegis Electronic Group Inc. offers the dPict Imaging 10042-001 Aexeon HDS PCI Frame Grabber, a powerful tool designed for high-quality video acquisition. This full-featured video capture board supports both HD-SDI and standard definition analog cameras, making it an ideal choice for diverse industrial and machine vision applications. The Aexeon HDS features a high-speed PCI Express interface, ensuring compatibility with modern systems and providing the bandwidth necessary for demanding video processing tasks.
At the heart of the Aexeon HDS is the TI DM642 Digital Media Processor, paired with a 64 MB SDRAM frame buffer, enabling real-time video transfer and processing without taxing the host CPU. This frame grabber supports up to 1080p SDI input, allowing for the capture of high-definition video. With its extensive I/O triggers and RS-232 serial interface, it provides precise camera control and synchronization, crucial for medical imaging, industrial inspection, and other vision-related applications.
The Aexeon HDS also includes the dPiction Capture Application for easy video configuration and capture, and an optional SDK for developers looking to integrate the frame grabber into custom applications. Whether for medical imaging, surveillance, or quality control, the Aexeon HDS ensures reliable and high-quality video capture, making it a valuable addition to any vision system. Order yours today and elevate your video acquisition capabilities!
Features:
- High-speed PCI Express format
- TI DM642 Digital Media Processor
- 64 MB SDRAM Frame Buffer
- Supports SDI and analog SD cameras
- Real-time video transfer and processing
- 8 general purpose I/O triggers
- RS-232 serial interface for camera control
- Free dPiction Capture Application
- Optional SDK with sample applications
Applications:
- Medical imaging systems
- Industrial inspection
- Surveillance systems
- Robotics vision
- Quality control systems
- Broadcast and video production
- Scientific research
| Form Factor • PCI Express x1 connector • Scatter gather DMA support Video Inputs • Standard or high-definition • RGB/YPrPb component, S-Video, and composite • HD-SDI support HD-SDI Video Acquisition • 3G-SDI data rate support up to 2.97 Gb/sec • HDTV standard support up to 1080p • SMPTE 259M: 360 Mb/sec with resolutions up to 960x486 (SDI) • SMPTE 292M: 1.485 Gb/sec with resolutions up to 1080i (HD-SDI) • SMPTE 424M: 2.97 Gb/sec with resolutions up to 1080p (3G-SDI) SD Video Acquisition • NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), and SECAM (B, D, G, K, K1, L) support • High-quality 10-bit digitization • Square-pixel and CCIR-601 resolution support Video Acquisition • Smooth interpolated scaling to randomly-sized windows • Bus-mastering video transfers to system memory, overlay, or display memory simultaneously. • Hardware overlay of graphics over video • RGB 32/24/16/15/8 and YUV 4:2:2 pixel formats • Area of interest transfers to on-board and system memory • 64 MB SDRAM frame buffer • Extensive interrupt control for robust capture • Real-time image flip, mirror, or rotate | I/O Control • 8 general purpose I/O triggers • Triggers programmable as input or output Camera Control • On-board microcontroller for reliable capture and control • RS-232 serial interface • Camera exposure control • 12-volt fused DC output for camera power supply Physical and Environmental • 6.60"(length) x 4.20" (height) • HD-44 connector • BNC connector (SDI input) • Operating temperature: 0° C to 70° C • Relative humidity: 5% up to 95% non-condensing Available Software Developers Kit • Supports 32/64-bit Windows® 8, 7 and XP • Linux board drivers and API • TWAIN support • Extensive documentation and sample code • dPiction Windows-based capture application • Sample applications with source code Ordering Information • Aexeon PCI Express: 10042-001 • dVeloper Foundation SDK: 90010 |
