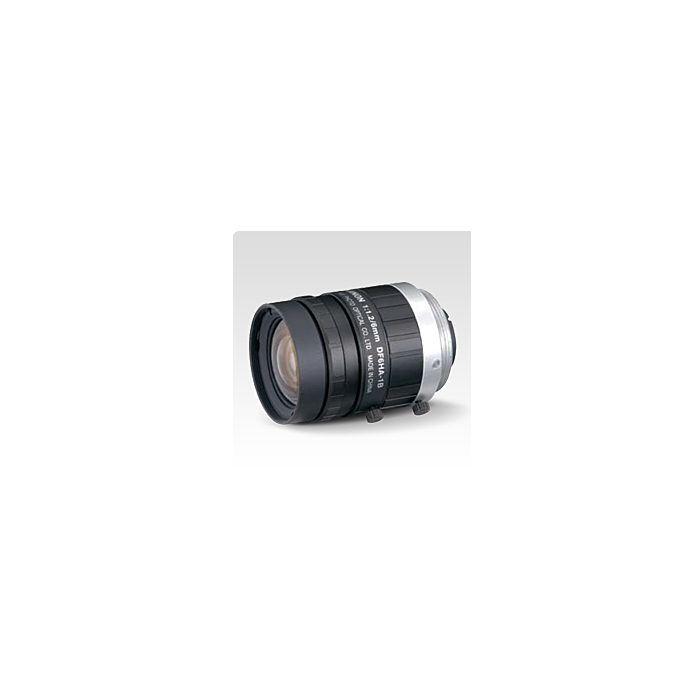

DF6HA-1S (DF6HA1B): Fujinon 1/2" 1.5 MP Lens (C-Mount)

DF6HA-1S. Designed to achieve high resolution, supporting up to 1.5 megapixel cameras. Designed for low distortion, enabling faithful image input.

$0.00 Please call for pricing

SKU

DF6HA-1S

The DF6HA-1S is designed for low distortion, high resolution images.

Features:

Fixed Focus

Manual Iris

Metal Mount (C-Mount)

Applications:

Industrial Inspection

Machine Vision

Focal Length	6
Iris Range	F1.2-F16
Angular Field of View	56°09′ × 43°36′
Back Focal Distance (In Air)	11.44mm
Exit Pupil Position (From Image Plane)	-46mm
Object Dimensions at M.O.D.	122 × 92 mm
Focusing Range (From Front of the Lens)	∞ - 0.1 m
Filter Thread	M27 × 0.5 mm
Weight	55g
