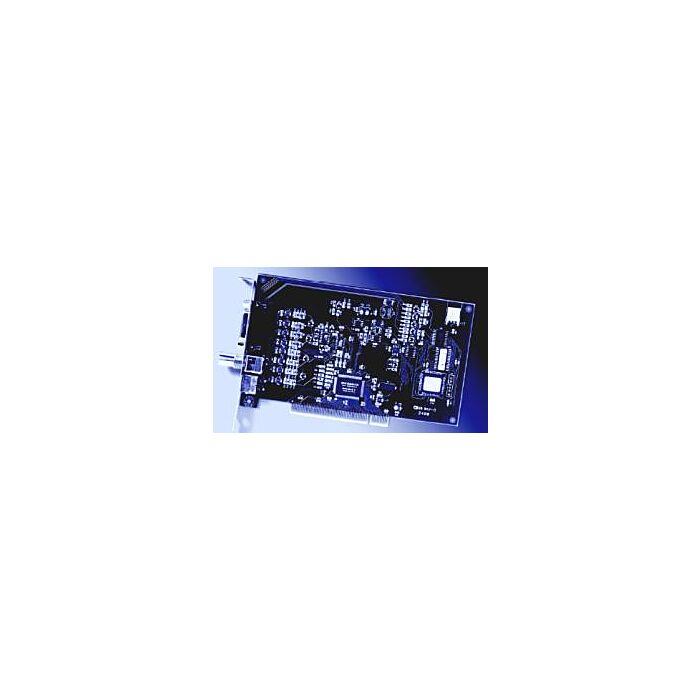

CyberOptics Imagenation PXC Frame Grabber Family PCX200AL

Lumenera Lt225 | USB Camera Image #1

Lumenera Lt225 USB Camera

CyberOptics Imagenation PXC Frame Grabber Family PCX200AF

*Product is discontinued please call for replacement options

Built on robust features found in much more expensive products. The Imagenation PXC200A Color Frame Grabber combines high quality color and monochrome video capture with a Peripheral Component Interface (PCI) at an unusually affordable price. High accuracy, low pixel jitter and other leading features offer solid support for the most demanding industrial and commercial applications.

SKU
PCX200AF

Built on robust features found in much more expensive products. The Imagenation PXC200A Color Frame Grabber combines high quality color and monochrome video capture with a Peripheral Component Interface (PCI) at an unusually affordable price. High accuracy, low pixel jitter and other leading features offer solid support for the most demanding industrial and commercial applications.

Features:

  • PCI bus master design for real-time image capture
  • Support for YcrCb, RGB and Y8 (gray scale) output formats
  • Low pixel jitter
  • Standard capture resolutions of 640 x 480 (NTSC) and 768 x 576 (PAL/SECAM)
  • Four multiplexed video inputs (NTSC/PAL/SECAM/S-video)
  • Real-time image scaling with interpolation, plus horizontal and vertical cropping
  • Continuous, software-initiated and triggered capture of frames
  • External TTL-level trigger
  • + 12 VDC camera power supply
  • Simple software interface
  • Software development support for Windows 95/98/2000/NT/ME/XP
  • Support for C/C++,Visual Basic and Direct Draw
  • SDK included
  • DAC reference generator eliminates inconsistency of AGC
  • Verified to FCC Part 15 Class A requirements. Full compliance to CE EMC standards (EN-55022, EN-55024, CISPR-22)
  • Input video formats NTSC, PAL, SECAM, S-video
    Input video 1V peak to peak, 75ohms
    Resolution NTSC: 640 x 480; PAL/SECAM: 768 x 576
    Sampling jitter Maximum of ± 4ns relative to horizontal synchronization (for a stable source)
    Output formats Color: YCrCb 4:2:2 and 4:1:1; RGB 32, 24, 16, 15; Monochrome: Y8
    External trigger Input pulled by 10k ohms to 5V, trigger requires a TTL pulse of 100 ns (minimum); software programmable edge or level sensitivity; software programmable polarity
    ESD protection All inputs and outputs are diode protected
    Form factor PCI short card, 174.6 x 106.7 mm (6.875 x 4.2 inches)
    Video noise ² 1 LSB (least significant bit)
    Camera power + 12 VDC output
    Video multiplexer Standard board: four video inputs (only one can be S-video); Optional Control Package: four video inputs, any or all of which can be S-video
    Power requirements + 5 VDC, 500 mA
    Operating temperature 0° C to 60° C
    Warranty One year limited parts and labor
    PXC200AF – Optional Control Package Specifications
    Video expanded to 4 S-video inputs
    Independent DC restore on four video inputs
    Fast field detect for unsynchronized sources
    Four TTL inputs, four TTL outputs
    Horizontal and vertical drive outputs
    Inputs and outputs can be configured as triggers and strobes
       – Programmable trigger edges, debounce
       – Programmable strobe durations, polarity
       – Video synchronized strobes programmable to any line
       – Programmable association between triggers/strobes/grabs/video channel
    Strobes can be inhibited during CCD transfer time (programmable inhibit zone)
