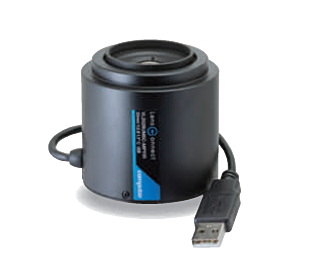

CBC-Computar VL3528UM6C-MPYIR 35mm LensConnect USB ITS Motorized Lens | 16MP, 1.1", F2.8, C-Mount
The CBC-Computar VL3528UM6C-MPYIR is a 16MP, 1.1", 35mm LensConnect USB ITS Series motorized C-mount lens with USB remote focus and iris control, ICR switching, visible-to-NIR performance, and stable high-resolution imaging for machine vision, surveillance, robotics, and industrial applications.
VL3528UM6C-MPYIR 35mm LensConnect USB ITS Motorized Lens
The CBC-Computar VL3528UM6C-MPYIR is a 16MP, 1.1" LensConnect USB ITS Series motorized C-mount lens designed for high-resolution imaging applications that require a tighter field of view, remote optical control, and stable visible-to-NIR performance. With a 35mm focal length, this lens is well suited for longer working distance inspection, targeted surveillance, intelligent traffic imaging, robotics, and industrial monitoring systems.
The VL3528UM6CMPYIR allows remote focus and iris adjustment through USB 2.0, helping integrators fine-tune imaging performance without physically touching the lens. Its floating focus design helps maintain image sharpness and reduce focus shift when moving between visible light and near-infrared wavelengths. The built-in ICR switching mechanism expands flexibility for day/night imaging and applications using IR or NIR illumination.
Key Features:
- 16MP resolution support for high-detail industrial imaging
- 35mm focal length for tighter field-of-view applications
- Supports 1.1" large-format sensors
- USB 2.0 remote control for motorized focus and iris
- Internal ICR switching mechanism for visible and NIR imaging
- No focus shift from visible light to near-infrared
- High spectral transmittance between visible light and NIR
- Floating focus design for stable high-resolution performance
- C-mount design for industrial camera integration
- Ideal for hard-to-reach or enclosed camera systems
Applications:
- Longer working-distance machine vision inspection
- Industrial surveillance and monitoring
- Intelligent transportation systems
- Robotics vision systems
- Factory automation
- Visible/NIR inspection
- AI-powered detection and classification
- Remote camera stations and enclosed imaging systems
Optical Specifications
| Model Number | VL3528UM6C-MPYIR |
|---|---|
| Focal Length | 35mm |
| Max. Image Format | φ17.6mm |
| Iris Operation Range | F2.8 - F16.0 |
| Focus Operation Range | 0.25m - Infinity |
| Iris Control | Motorized |
| Focus Control | Motorized |
| Back Focal Length | 17.9mm |
| Flange Back Length | 17.526mm in air |
| Mount | C-Mount |
| Filter Size | M35.5 P=0.5mm |
| Operating Temperature | -20°C to +60°C |
Mechanical & Electrical Specifications
| Control Interface | USB 2.0 |
|---|---|
| Power Mode | Bus power, 5V / 500mA |
| Connector | USB Type-A |
