CBC-Computar VL3528SM6C-MPYIR 35mm LensConnect I²C ITS Motorized Lens | 16MP, 1.1", F2.8, C-Mount

VL3528SM6C-MPYIR 35mm LensConnect I²C ITS Motorized Lens

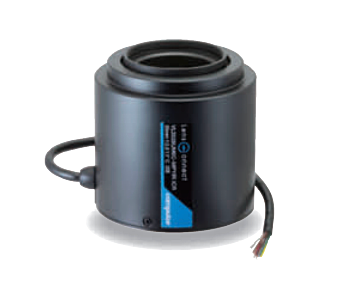

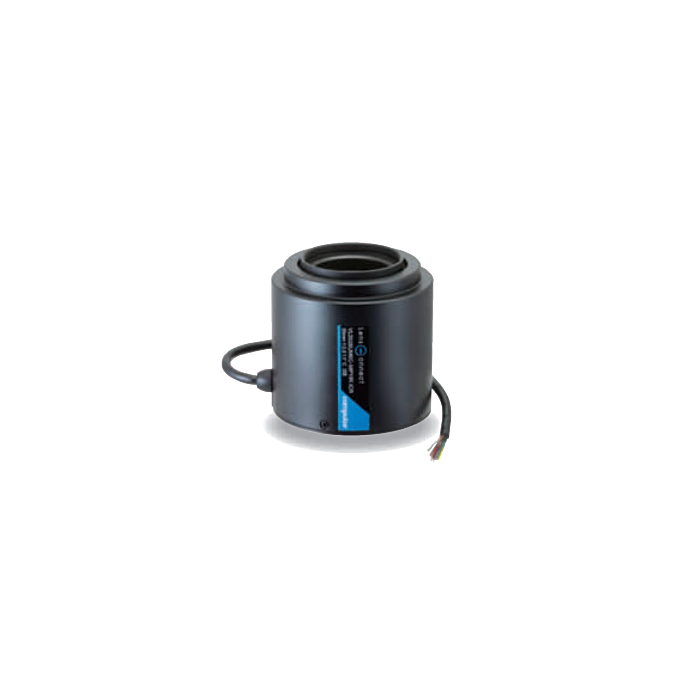

The CBC-Computar VL3528SM6C-MPYIR is a 16MP, 1.1" LensConnect I²C ITS Series motorized C-mount lens built for embedded vision, compatible industrial cameras, OEM imaging systems, machine vision, robotics, surveillance, and intelligent traffic applications. With its 35mm focal length, this model is ideal for tighter fields of view, longer working distances, and targeted inspection or monitoring applications that require remote lens control.

The I²C interface allows compatible cameras and embedded systems to control focus and iris electronically, making the VL3528SM6CMPYIR a strong option for compact or integrated imaging platforms. Its internal ICR switching mechanism supports visible and near-infrared imaging, while the floating focus design helps prevent focus shift from visible light to NIR. This helps maintain sharp, repeatable image performance in systems that operate across variable lighting conditions.

Key Features:

• 16MP high-resolution machine vision lens
• 35mm focal length for narrow field-of-view applications
• Supports large 1.1" image sensors
• I²C interface for embedded and camera-side control
• Motorized focus and iris adjustment
• Internal ICR switching mechanism
• No focus shift from visible light to near-infrared
• High spectral transmittance between visible and NIR
• Floating focus design for stable image quality
• C-mount compatibility for industrial camera systems

Applications:

• Longer working-distance inspection
• Embedded vision and OEM camera systems
• Robotics vision and alignment
• Industrial monitoring
• Intelligent traffic and transportation imaging
• Surveillance systems
• Visible/NIR imaging
• Factory automation and quality control
