CBC-Computar VL2528SM6C-MPYIR 25mm LensConnect I²C ITS Motorized Lens | 16MP, 1.1", F2.8, C-Mount
The CBC-Computar VL2528SM6C-MPYIR is a 16MP, 1.1", 25mm LensConnect I²C ITS Series motorized C-mount lens with I²C remote focus and iris control, ICR switching, visible-to-NIR stability, and high-resolution performance for OEM, embedded vision, and machine vision systems.

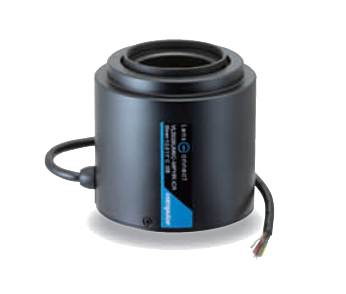

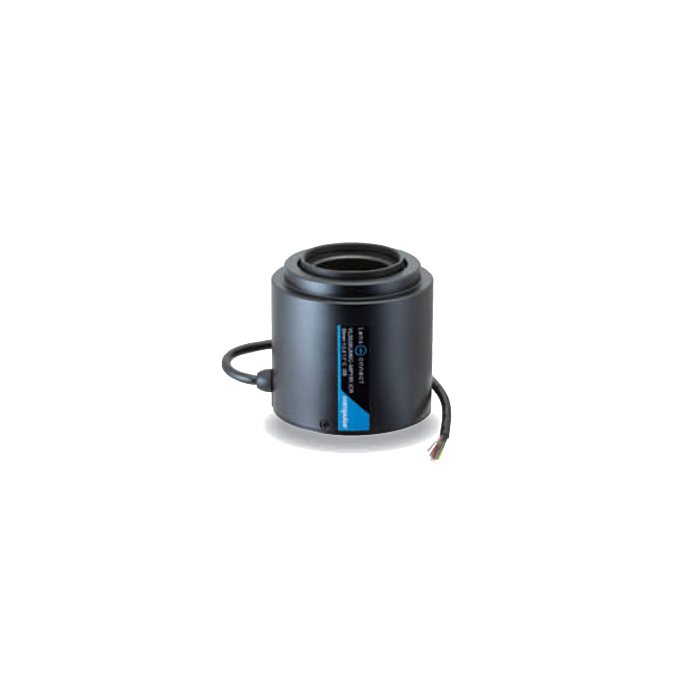

VL2528SM6C-MPYIR 25mm LensConnect I²C ITS Motorized Lens
The CBC-Computar VL2528SM6C-MPYIR is a 16MP, 1.1" LensConnect I²C ITS Series motorized C-mount lens designed for embedded vision, OEM camera systems, industrial automation, robotics, surveillance, and machine vision applications. With a 25mm focal length, this lens delivers a practical balance of field of view and working distance for inspection and monitoring systems that require remote focus and iris control through I²C.
Unlike manual lenses that require physical adjustment, the VL2528SM6CMPYIR allows compatible cameras and control systems to adjust focus and iris electronically. This helps improve repeatability, reduce setup time, and simplify integration into enclosed or automated imaging platforms. Its internal ICR switching mechanism and visible-to-NIR optical stability make it well suited for day/night imaging, IR-assisted inspection, and industrial systems that operate under changing lighting conditions.
Key Features:
- 16MP resolution support for high-performance machine vision
- 25mm fixed focal length for balanced imaging coverage
- Supports 1.1" image sensors
- I²C control interface for compatible cameras and embedded platforms
- Motorized focus and iris control
- Equipped with internal ICR switching mechanism
- No focus shift from visible light to NIR
- High spectral transmittance between visible and near-infrared wavelengths
- C-mount lens for industrial camera systems
- Designed for OEM, embedded, and remote imaging applications
Applications:
- OEM camera integration
- Embedded industrial vision systems
- Factory automation
- Robotics and machine guidance
- Machine vision inspection
- Intelligent traffic systems
- Surveillance and monitoring
- Visible/NIR imaging applications
Optical Specifications
| Model Number | VL2528SM6C-MPYIR |
|---|---|
| Series | LensConnect I²C ITS Series |
| Focal Length | 25mm |
| Resolution | 16MP |
| Max. Image Format | φ17.6mm / 1.1" |
| Iris Operation Range | F2.8 - F16.0 |
| Focus Operation Range | 0.12m - Infinity |
| Iris Control | Motorized |
| Focus Control | Motorized |
| Back Focal Length | 15.9mm |
| Flange Back Length | 17.526mm in air |
| Mount | C-Mount |
| Filter Size | M35.5 P=0.5mm |
| Weight | 166g |
| Operating Temperature | -20°C to +60°C |
Mechanical & Electrical Specifications
| Control Interface | I²C |
|---|---|
| Power Mode | DC 5.0V ±10%, 500mA max |
| ICR Switching Mechanism | Yes |
