CBC-Computar VL2028SM6C-MPYIR 20mm LensConnect I²C ITS Motorized Lens | 16MP, 1.1", F2.8, C-Mount
The CBC-Computar VL2028SM6C-MPYIR is a 16MP, 1.1", 20mm LensConnect I²C ITS Series motorized C-mount lens with remote focus and iris control, ICR switching, visible-to-NIR performance, and I²C control for compatible industrial cameras and embedded vision systems.

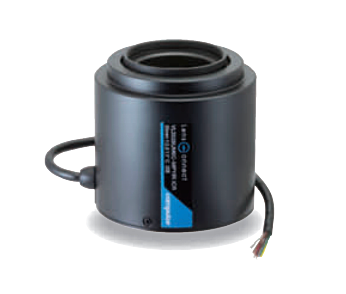

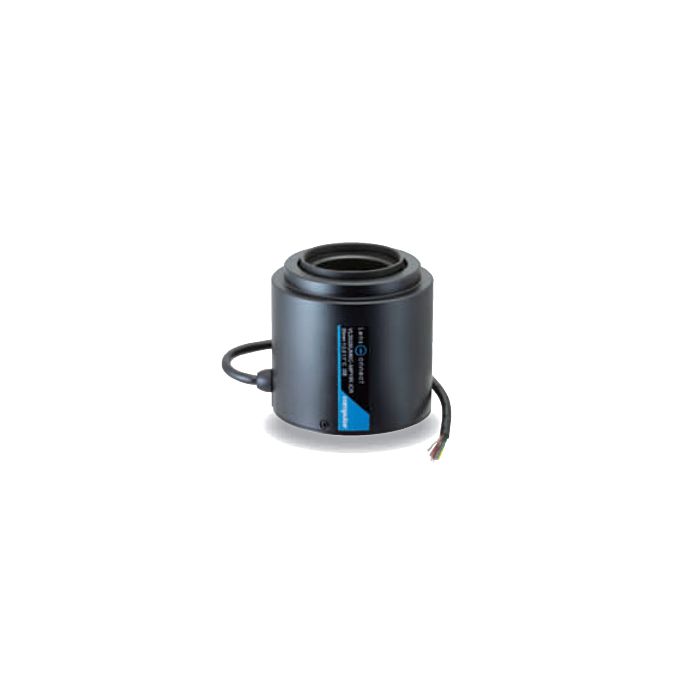

VL2028SM6C-MPYIR 20mm LensConnect I²C ITS Motorized Lens
The CBC-Computar VL2028SM6C-MPYIR is a 16MP, 1.1" LensConnect I²C ITS Series motorized C-mount lens developed for compatible industrial cameras, embedded vision systems, OEM imaging platforms, robotics, surveillance, and machine vision applications. With a 20mm focal length and I²C interface, this model enables direct camera-side control of focus and iris for integrated imaging systems.
The VL2028SM6CMPYIR is ideal for applications where lens control needs to be handled through the camera or embedded system rather than a USB software connection. Its motorized focus and iris functions allow precise remote adjustment, while the internal ICR switching mechanism supports visible and near-infrared imaging. The lens is designed to maintain stable image quality with no focus shift from visible light to NIR, making it valuable for day/night systems and inspection environments using IR illumination.
Key Features:
- 16MP lens designed for high-resolution industrial imaging
- 20mm focal length for flexible machine vision coverage
- Supports 1.1" image sensors
- I²C interface for compatible camera and embedded system control
- Motorized focus and iris adjustment
- Internal ICR switching mechanism
- No focus shift from visible light to near-infrared
- High spectral transmittance between visible light and NIR
- C-mount design for industrial cameras
- Strong fit for OEM and embedded vision integration
Applications:
- Embedded vision systems
- OEM industrial camera integration
- Machine vision inspection
- Robotics vision and automation
- Surveillance and remote monitoring
- Intelligent traffic imaging
- Visible/NIR machine vision
- Factory automation and quality control
Optical Specifications
| Model Number | VL2028SM6C-MPYIR |
|---|---|
| Series | LensConnect I²C ITS Series |
| Focal Length | 20mm |
| Resolution | 16MP |
| Max. Image Format | φ17.6mm / 1.1" |
| Iris Operation Range | F2.8 - F16.0 |
| Focus Operation Range | 0.1m - Infinity |
| Iris Control | Motorized |
| Focus Control | Motorized |
| Back Focal Length | 18.5mm |
| Flange Back Length | 17.526mm in air |
| Mount | C-Mount |
| Filter Size | M35.5 P=0.5mm |
| Weight | 162g |
| Operating Temperature | -20°C to +60°C |
Mechanical & Electrical Specifications
| Control Interface | I²C |
|---|---|
| Power Mode | DC 5.0V ±10%, 500mA max |
| ICR Switching Mechanism | Yes |
