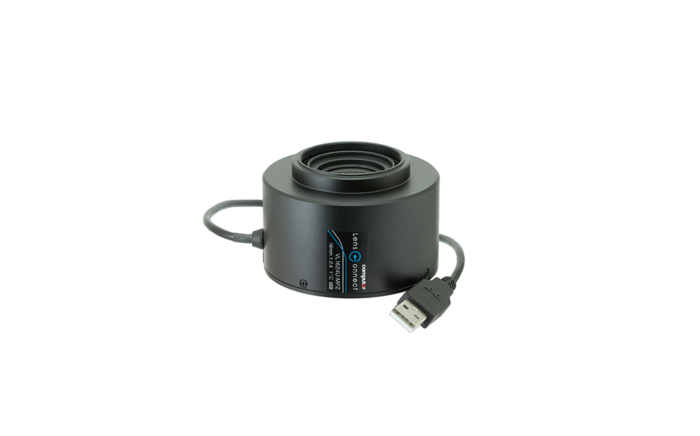

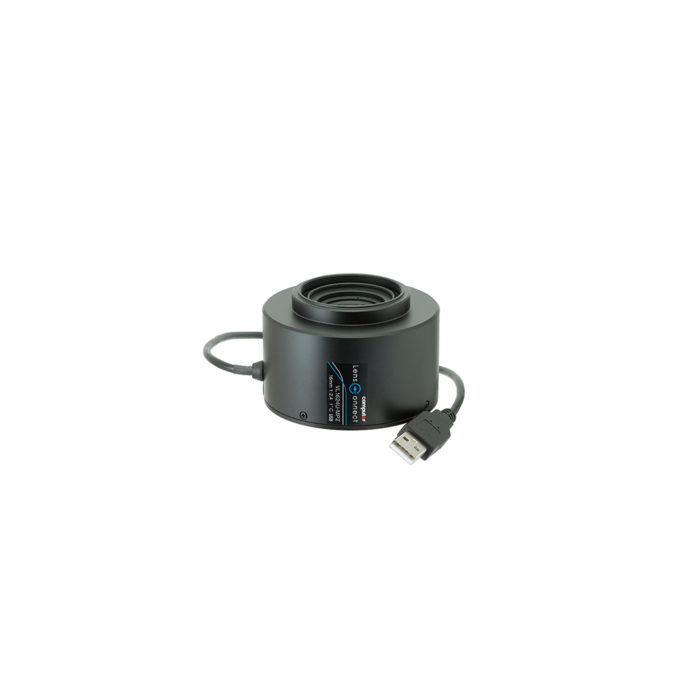

Computar VL1624U-MPZ 1”, 16mm, f2.4, 20MP, LensConnect, C-mount
The Computar VL1624U-MPZ is a high-performance 20MP machine vision lens engineered for precision imaging across large-format 1” sensors, including Sony IMX183-based cameras. With a 16mm focal length and fast f/2.4 aperture, this lens delivers excellent light-gathering capability, sharp contrast, and consistent edge-to-edge resolution—making it ideal for demanding inspection, automation, and measurement applications.
Designed with Computar’s advanced LensConnect technology, the VL1624U-MPZ enables full electronic control of iris and focus via USB, eliminating the need for manual adjustments and enabling seamless integration into automated vision systems. The built-in P-Iris with remote adjustment ensures optimal exposure control in dynamic lighting environments, while the floating focus design maintains high resolution from close-up to long working distances.
Precision stepper motors provide accurate, repeatable focus control, making this lens well-suited for applications requiring frequent adjustments or multi-position setups. Combined with user-friendly control software, the VL1624UMPZ simplifies installation, calibration, and system tuning—reducing setup time and improving operational efficiency.
Built for industrial reliability, this C-mount lens is optimized for high-resolution sensors and stable long-term performance in factory automation, robotics, ITS, and quality inspection systems.
Key Features:
- 20MP resolution optimized for high-detail imaging
- Designed for 1” sensors, including Sony IMX183
- 16mm focal length for balanced field of view and working distance
- Fast f/2.4 aperture for improved low-light performance
- LensConnect USB control for remote focus and iris adjustment
- P-Iris technology ensures precise, consistent exposure control
- Floating focus design maintains sharpness from near to far
- High-precision stepper motors for repeatable, automated focus control
- Easy setup and control via dedicated software interface
- C-mount compatibility for broad integration with industrial cameras
Typical Applications:
- Machine vision inspection systems
- Factory automation & robotics
- Electronics and semiconductor inspection
- Metrology and measurement systems
- Intelligent transportation systems (ITS)
- Surveillance and high-resolution imaging
| Model No. | VL1624U-MPZ |
| Focal Length | 16 mm |
| Max. Aperture Ratio | 1:2.4 |
| Max. Image Format | 12.8 mm x 9.6 mm (φ16 mm) |
| Operation Range - Iris | F2.4 - F16.0 |
| Operation Range - Focus | 0.1 m - Inf. |
| Control - Iris | Manual |
| Control - Focus | Manual |
| Effective Lens Aperture - Front | φ20.9 mm |
| Effective Lens Aperture - Rear | φ15.9 mm |
| Distortion - 1 Type | 0.0% |
| Distortion - 2/3 Type | -0.4% |
| Distortion - 1/1.8 Type | -0.4% |
| Back Focal Length | - |
| Flange Back Length | 17.526 mm |
| Mount | C-Mount |
| Object Dimension at M.O.D. - 1 Type | 88.6 mm x 66.3 mm |
| Object Dimension at M.O.D. - 2/3 Type | 60.7 mm x 45.5 mm |
| Object Dimension at M.O.D. - 1/1.8 Type | 49.6 mm x 37.2 mm |
| Angle of View - 1 Type - Diagonal | 53.2° |
| Angle of View - 1 Type - Horizontal | 43.8° |
| Angle of View - 1 Type - Vertical | 33.6° |
| Angle of View - 2/3 Type - Diagonal | 38.1° |
| Angle of View - 2/3 Type - Horizontal | 30.9° |
| Angle of View - 2/3 Type - Vertical | 23.4° |
| Angle of View - 1/1.8 Type - Diagonal | 31.6° |
| Angle of View - 1/1.8 Type - Horizontal | 25.5° |
| Angle of View - 1/1.8 Type - Vertical | 19.2° |
| Filter Size | M35.5 P=0.5 mm |
| Dimensions | φ39.5 mm x 47 mm |
| Weight | 108.1 g |
| Operating Temperature | -10°C - +50°C |
