CBC-Computar V7556-MPZ-R 75mm Ruggedized Machine Vision Lens, 20MP, 1" Format, F5.6, C-Mount
The Computar V7556-MPZ-R is a 75mm ruggedized C-mount machine vision lens for 20MP 1" format cameras, featuring F5.6 optics, ultra-low distortion, 2.4µm pixel compatibility, and anti-vibration/shock resistance for harsh industrial environments.

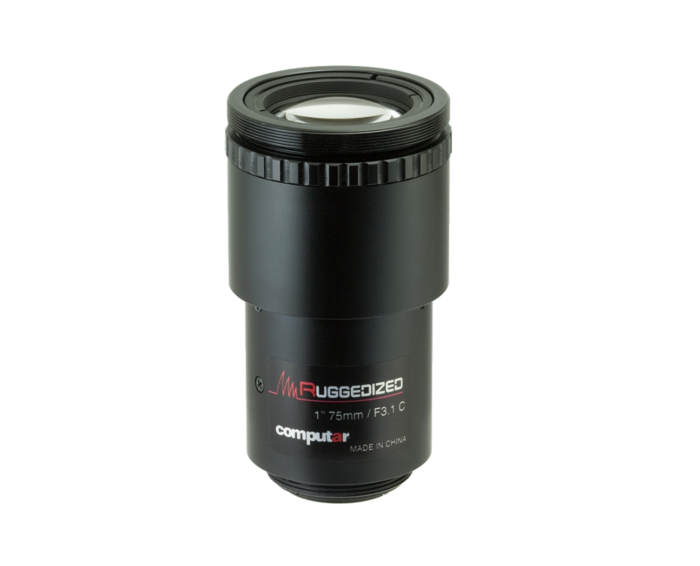

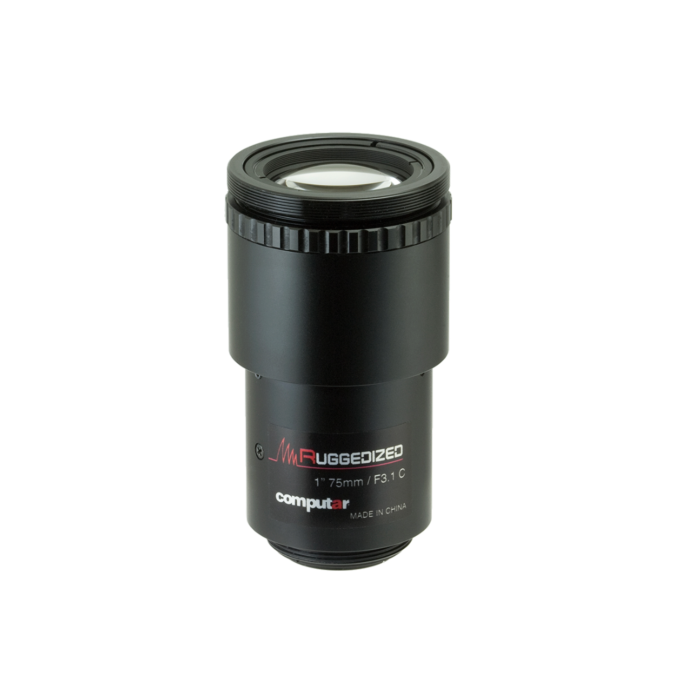

Computar V7556-MPZ-R 75mm Ruggedized Machine Vision Lens
The Computar V7556-MPZ-R is a 75mm ruggedized machine vision lens designed for high-resolution 20 megapixel imaging on 1" format sensors. Built for demanding industrial imaging environments, this C-mount lens provides sharp optical performance, ultra-low distortion, and a durable mechanical design for factory automation, inspection, robotics, traffic monitoring, and other machine vision applications.
The V7556-MPZ-R features a fixed F5.6 iris, 75mm focal length, and 2.4µm pixel compatibility, making it suitable for high-density image sensors used in precision inspection and measurement systems. Its floating focus design helps maintain excellent image quality from minimum object distance to infinity, supporting consistent imaging performance across a wide working range.
As part of Computar’s ruggedized MPZ-R lens series, the V7556MPZR is engineered for anti-vibration resistance up to 10G and anti-shock resistance up to 15G. This makes it a dependable choice for industrial environments where cameras and lenses may be exposed to vibration, motion, impact, or continuous machine operation.
Key Features:
- 75mm focal length for long-range machine vision imaging
- Supports 20 megapixel resolution
- Designed for 1" format sensors
- C-mount lens for industrial camera integration
- F5.6 fixed iris design
- Ruggedized construction for harsh machine vision environments
- Anti-vibration resistant up to 10G
- Anti-shock resistant up to 15G
- 2.4µm pixel compatible high-resolution optical design
- Ultra-low distortion for accurate inspection and measurement
- Floating focus design provides excellent image quality from MOD to infinity
- Minimum object distance of 0.1m
- Compact and lightweight design for machine vision systems
- Available in small quantities
- Fixed iris can be customized to a desired F-number
Applications:
- Factory automation
- Industrial inspection
- Machine vision measurement
- Robotics and embedded vision
- Quality control systems
- Intelligent traffic systems
- Security and surveillance imaging
- High-resolution inspection cameras
- Harsh-environment vision systems
The Computar V7556-MPZ-R is part of a ruggedized lens family available in 8mm, 12mm, 16mm, 25mm, 35mm, 50mm, and 75mm focal lengths, giving system designers multiple options for matching field of view, working distance, and sensor requirements.
| Manufacturer | CBC-Computar |
| Model | V7556-MPZ-R |
| Lens Series | MPZ-R Ruggedized Machine Vision Lens Series |
| Lens Type | Fixed focal length machine vision lens |
| Focal Length | 75mm |
| Iris | Fixed Iris |
| F-Number | F5.6 |
| Lens Mount | C-Mount |
| Sensor Format | 1" Format |
| Resolution | 20 Megapixel |
| Pixel Compatibility | 2.4µm compatible |
| Minimum Object Distance | 0.1m |
| Optical Design | Floating focus design for high image quality from MOD to infinity |
| Distortion | Ultra-low distortion |
| Ruggedized Rating | Anti-vibration and anti-shock resistant design |
| Vibration Resistance | 10G |
| Shock Resistance | 15G |
| Compatible Imaging Format | Full HD and high-resolution machine vision formats |
| Available Focal Lengths in Series | 8mm, 12mm, 16mm, 25mm, 35mm, 50mm, and 75mm |
| Customization | Fixed iris customizable to desired F-number |
| Applications | Factory automation, machine vision inspection, robotics, traffic systems, surveillance, and industrial imaging |
