CBC-Computar V2540-MPZ-R 25mm Ruggedized Machine Vision Lens, 20MP, 1" Format, F4.0, C-Mount
The Computar V2540-MPZ-R is a 25mm ruggedized C-mount machine vision lens for 20MP 1" format cameras, featuring F4.0 optics, ultra-low distortion, 2.4µm pixel compatibility, and anti-vibration/shock resistance for harsh industrial environments.

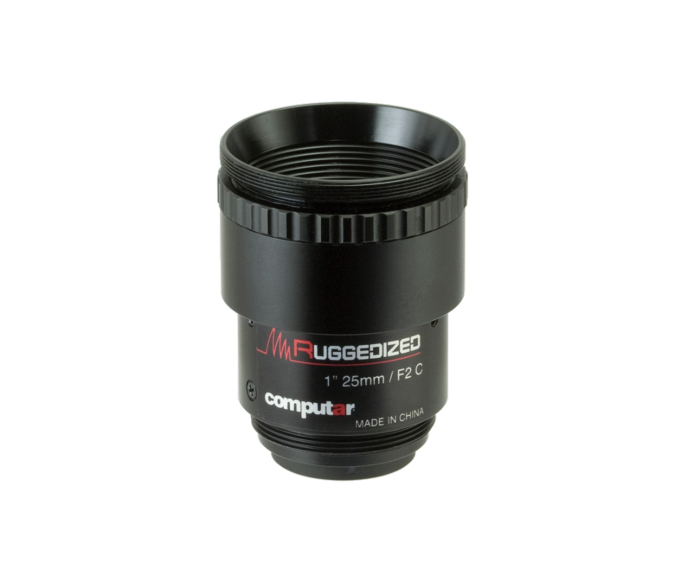

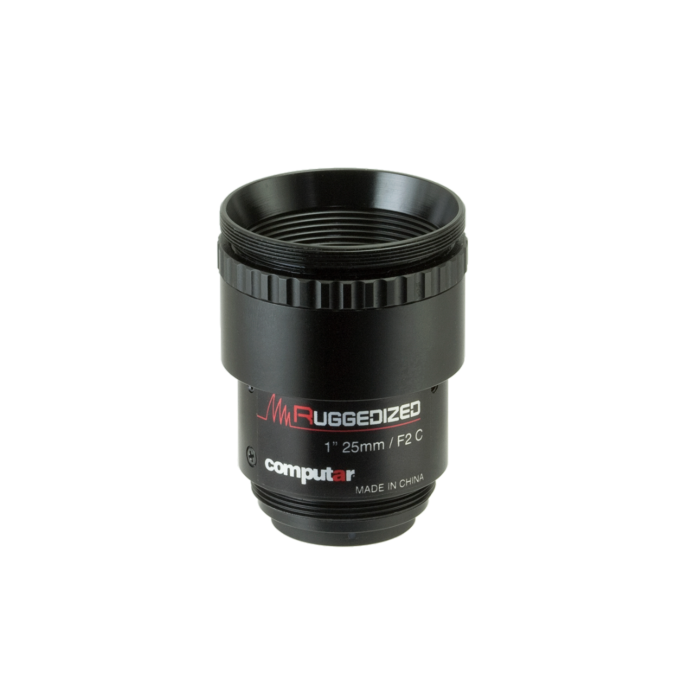

Computar V2540-MPZ-R 25mm Ruggedized Machine Vision Lens
The Computar V2540-MPZ-R is a 25mm ruggedized machine vision lens designed for high-resolution 20 megapixel imaging on 1" format sensors. Built for demanding industrial imaging environments, this C-mount lens delivers sharp optical performance, ultra-low distortion, and mechanical durability for factory automation, inspection, robotics, traffic monitoring, and other machine vision applications.
The V2540-MPZ-R features a fixed F4.0 iris, 25mm focal length, and 2.4µm pixel compatibility, making it suitable for high-density image sensors used in precision inspection, measurement, and quality control systems. Its floating focus design helps maintain excellent image quality from minimum object distance to infinity, supporting consistent imaging performance across a wide working range.
As part of Computar’s ruggedized MPZ-R lens series, the V2540MPZR is engineered for anti-vibration resistance up to 10G and anti-shock resistance up to 15G. This makes it a dependable lens option for harsh industrial environments where cameras and optics may be exposed to vibration, motion, impact, or continuous machine operation.
Key Features:
- 25mm focal length for machine vision imaging and inspection
- Supports 20 megapixel resolution
- Designed for 1" format sensors
- C-mount lens for industrial camera integration
- F4.0 fixed iris design
- Ruggedized construction for harsh machine vision environments
- Anti-vibration resistant up to 10G
- Anti-shock resistant up to 15G
- 2.4µm pixel compatible high-resolution optical design
- Ultra-low distortion for accurate inspection and measurement
- Floating focus design provides excellent image quality from MOD to infinity
- Minimum object distance of 0.1m
- Compact and lightweight design for machine vision systems
- Available in small quantities
- Fixed iris can be customized to a desired F-number
Applications:
- Factory automation
- Industrial inspection
- Machine vision measurement
- Quality control systems
- Robotics and embedded vision
- Intelligent traffic systems
- Security and surveillance imaging
- High-resolution inspection cameras
- Harsh-environment vision systems
The Computar V2540-MPZ-R is part of a ruggedized lens family available in 8mm, 12mm, 16mm, 25mm, 35mm, 50mm, and 75mm focal lengths, giving system designers multiple options for matching field of view, working distance, and sensor requirements.
| Manufacturer | CBC-Computar |
| Model | V2540-MPZ-R |
| Lens Series | MPZ-R Ruggedized Machine Vision Lens Series |
| Lens Type | Fixed focal length machine vision lens |
| Focal Length | 25mm |
| Iris | Fixed Iris |
| F-Number | F4.0 |
| Lens Mount | C-Mount |
| Sensor Format | 1" Format |
| Resolution | 20 Megapixel |
| Pixel Compatibility | 2.4µm compatible |
| Minimum Object Distance | 0.1m |
| Optical Design | Floating focus design for high image quality from MOD to infinity |
| Distortion | Ultra-low distortion |
| Ruggedized Rating | Anti-vibration and anti-shock resistant design |
| Vibration Resistance | 10G |
| Shock Resistance | 15G |
| Compatible Imaging Format | Full HD and high-resolution machine vision formats |
| Available Focal Lengths in Series | 8mm, 12mm, 16mm, 25mm, 35mm, 50mm, and 75mm |
| Customization | Fixed iris customizable to desired F-number |
| Applications | Factory automation, machine vision inspection, robotics, traffic systems, surveillance, and industrial imaging |
