CBC-Computar V2526-MPZ-R 25mm Ruggedized Machine Vision Lens, 20MP, 1" Format, F2.6, C-Mount
The Computar V2526-MPZ-R is a 25mm ruggedized C-mount machine vision lens for 20MP 1" format cameras, featuring F2.6 optics, ultra-low distortion, 2.4µm pixel compatibility, floating focus design, customizable fixed iris options, and 10G/15G vibration and shock resistance for harsh industrial imaging environments.

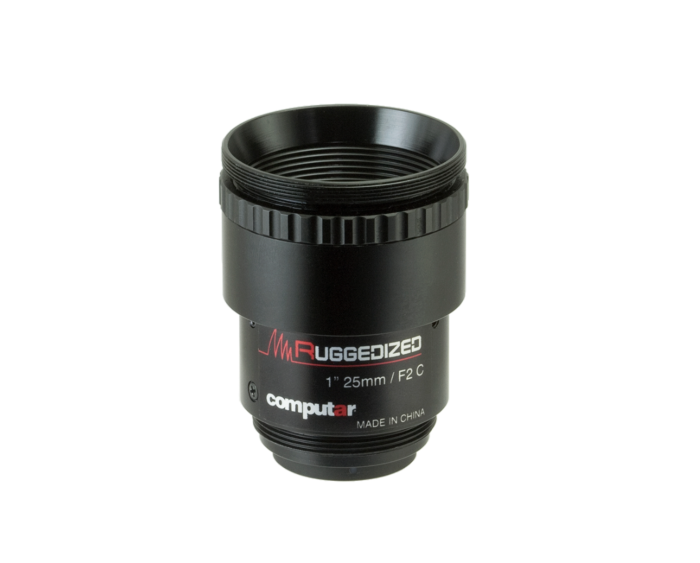

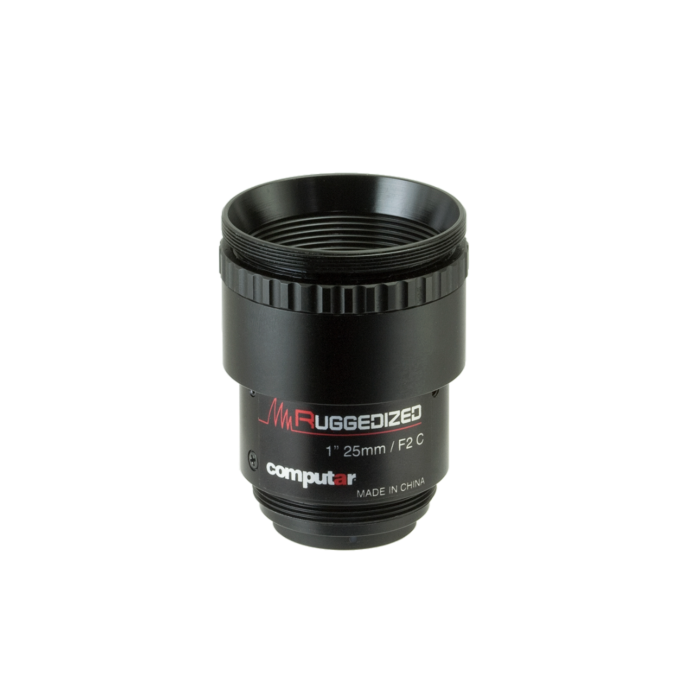

Computar V2526-MPZ-R 25mm Ruggedized Machine Vision Lens
The Computar V2526-MPZ-R is a 25mm ruggedized machine vision lens designed for high-resolution 20 megapixel imaging on 1" format sensors. Built for demanding industrial vision environments, this C-mount lens combines high-resolution optical performance, ultra-low distortion, and rugged mechanical durability for factory automation, robotics, inspection, traffic monitoring, surveillance, and other machine vision applications.
The V2526-MPZ-R features a fixed F2.6 iris, 25mm focal length, and 2.4µm pixel compatibility, making it a strong option for modern high-density industrial image sensors. The 25mm focal length provides a practical balance between field of view, working distance, and image detail, making it well suited for precision inspection systems, measurement applications, alignment tasks, and automated quality control.
Engineered as part of Computar’s MPZ-R ruggedized lens series, the V2526MPZR is built to withstand anti-vibration levels up to 10G and anti-shock levels up to 15G. This ruggedized construction helps maintain optical stability and image consistency in harsh industrial environments where cameras and lenses may be exposed to vibration, motion, impact, or continuous equipment operation.
The floating focus design supports excellent image quality from minimum object distance to infinity, while the ultra-low distortion optics help improve measurement accuracy, edge-to-edge consistency, and image reliability. The fixed iris design can also be customized to a desired F-number, giving machine vision integrators added flexibility when optimizing exposure, depth of field, and optical performance for application-specific inspection requirements.
Key Features:
- 25mm focal length for machine vision, inspection, and industrial imaging
- Supports 20 megapixel resolution for high-detail image capture
- Designed for 1" format sensors
- C-mount lens for industrial camera integration
- F2.6 fixed iris design
- Customizable fixed iris available to your desired F-number
- Ruggedized construction for harsh machine vision environments
- Anti-vibration resistant up to 10G
- Anti-shock resistant up to 15G
- 2.4µm pixel compatible high-resolution optical design
- Ultra-low distortion for accurate inspection, alignment, and measurement
- Floating focus design provides excellent image quality from MOD to infinity
- Minimum object distance of 0.1m
- Compact and lightweight design for machine vision systems
- Available in small quantities
- Available in 8mm, 12mm, 16mm, 25mm, 35mm, 50mm, and 75mm focal lengths
Applications:
- Factory automation and industrial inspection
- Machine vision measurement and alignment
- Automated quality control and defect detection
- Robotics and embedded vision systems
- Traffic monitoring and intelligent transportation systems
- Security and surveillance imaging
- High-resolution area scan camera systems
- Harsh-environment vision systems
- OEM vision equipment and industrial camera integration
The Computar V2526-MPZ-R belongs to a ruggedized lens family available in 8mm, 12mm, 16mm, 25mm, 35mm, 50mm, and 75mm focal lengths, giving machine vision integrators multiple options for matching field of view, working distance, sensor size, depth of field, and inspection requirements.
| Manufacturer | CBC-Computar |
| Model | V2526-MPZ-R |
| Lens Series | MPZ-R Ruggedized Machine Vision Lens Series |
| Lens Type | Fixed focal length ruggedized machine vision lens |
| Focal Length | 25mm |
| Iris | Fixed Iris |
| F-Number | F2.6 |
| Iris Customization | Customizable to desired F-number |
| Lens Mount | C-Mount |
| Sensor Format | 1" Format |
| Resolution | 20 Megapixel |
| Pixel Compatibility | 2.4µm compatible |
| Minimum Object Distance | 0.1m |
| Optical Design | Floating focus design for high image quality from MOD to infinity |
| Distortion | Ultra-low distortion |
| Ruggedized Rating | Anti-vibration and anti-shock resistant design |
| Vibration Resistance | 10G |
| Shock Resistance | 15G |
| Compatible Imaging Format | Full HD and high-resolution machine vision formats |
| Mechanical Design | Compact and lightweight ruggedized lens housing |
| Available Focal Lengths in Series | 8mm, 12mm, 16mm, 25mm, 35mm, 50mm, and 75mm |
| Applications | Factory automation, machine vision inspection, robotics, traffic systems, surveillance, measurement, and industrial imaging |
