CBC-Computar V0856-MPZ-R 8mm Ruggedized Machine Vision Lens, 20MP, 1" Format, F5.6, C-Mount

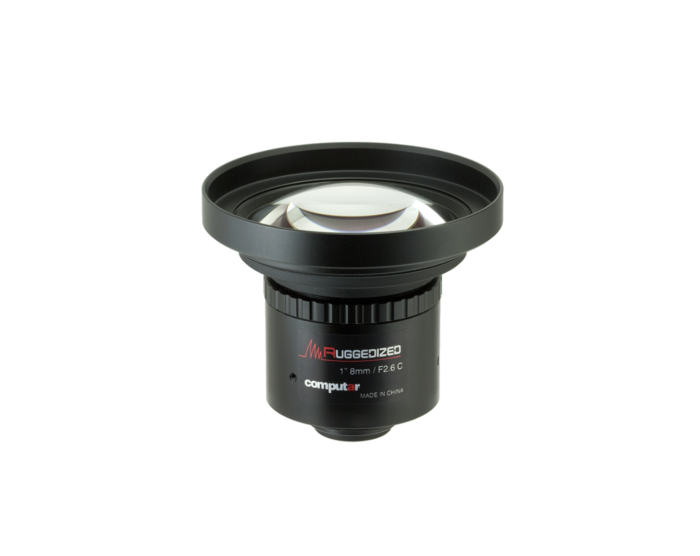

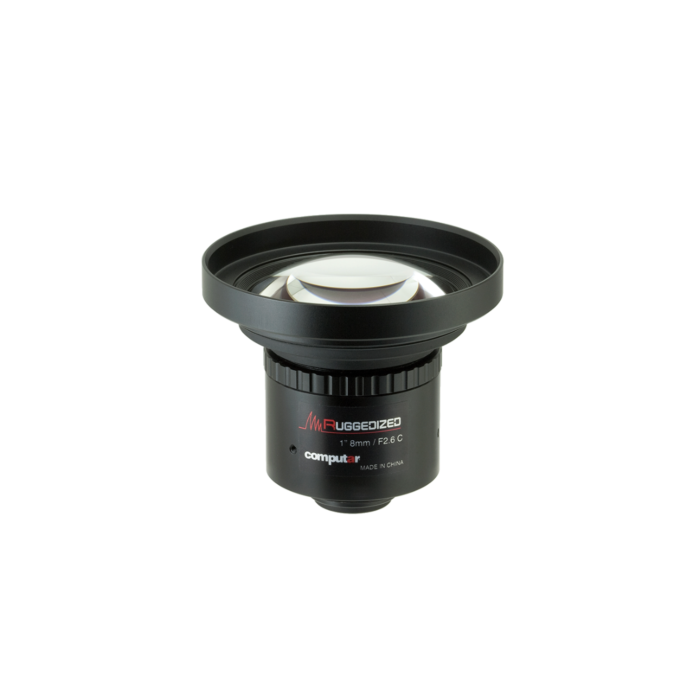

Computar V0856-MPZ-R 8mm Ruggedized Machine Vision Lens

The Computar V0856-MPZ-R is an 8mm ruggedized machine vision lens designed for high-resolution 20 megapixel imaging on 1" format sensors. Built for demanding industrial vision environments, this C-mount lens combines wide-angle image capture, high-resolution optical performance, ultra-low distortion, and rugged mechanical durability for factory automation, robotics, inspection, traffic monitoring, surveillance, and other machine vision applications.

The V0856-MPZ-R features a fixed F5.6 iris, 8mm focal length, and 2.4µm pixel compatibility, making it a strong option for modern high-density industrial image sensors. The 8mm focal length provides wide field-of-view coverage for inspection systems, embedded vision platforms, and automated imaging setups where broader scene capture is needed while still maintaining the detail required for analysis, alignment, and defect detection.

Engineered as part of Computar’s MPZ-R ruggedized lens series, the V0856-MPZ-R is built to withstand anti-vibration levels up to 10G and anti-shock levels up to 15G. This ruggedized construction helps maintain optical stability and image consistency in harsh environments where cameras and lenses may be exposed to vibration, motion, impact, or continuous equipment operation.

The floating focus design supports excellent image quality from minimum object distance to infinity, while the ultra-low distortion optics help improve measurement accuracy, edge-to-edge consistency, and image reliability. The V0856MPZR also offers fixed iris customization to a desired F-number, giving machine vision integrators added flexibility when optimizing exposure, depth of field, lighting control, and optical performance for application-specific inspection requirements.

Key Features:

• 8mm wide-angle focal length for machine vision, inspection, and industrial imaging
• Supports 20 megapixel resolution for high-detail image capture
• Designed for 1" format sensors
• C-mount lens for industrial camera integration
• F5.6 fixed iris design
• F2.6 and F4.0 versions also available for alternate exposure and depth-of-field requirements
• Customizable fixed iris available to your desired F-number
• Ruggedized construction for harsh machine vision environments
• Anti-vibration resistant up to 10G
• Anti-shock resistant up to 15G
• 2.4µm pixel compatible high-resolution optical design
• Ultra-low distortion for accurate inspection, alignment, and measurement
• Floating focus design provides excellent image quality from MOD to infinity
• Minimum object distance of 0.1m
• Compact and lightweight design for machine vision systems
• Available in small quantities
• Available in 8mm, 12mm, 16mm, 25mm, 35mm, 50mm, and 75mm focal lengths

Applications:

• Factory automation and industrial inspection
• Wide-area machine vision imaging
• Machine vision measurement and alignment
• Automated quality control and defect detection
• Robotics and embedded vision systems
• Traffic monitoring and intelligent transportation systems
• Security and surveillance imaging
• High-resolution area scan camera systems
• Harsh-environment vision systems
• OEM vision equipment and industrial camera integration

The Computar V0856-MPZ-R belongs to a ruggedized lens family available in 8mm, 12mm, 16mm, 25mm, 35mm, 50mm, and 75mm focal lengths, giving machine vision integrators multiple options for matching field of view, working distance, sensor size, depth of field, exposure needs, and inspection requirements.
