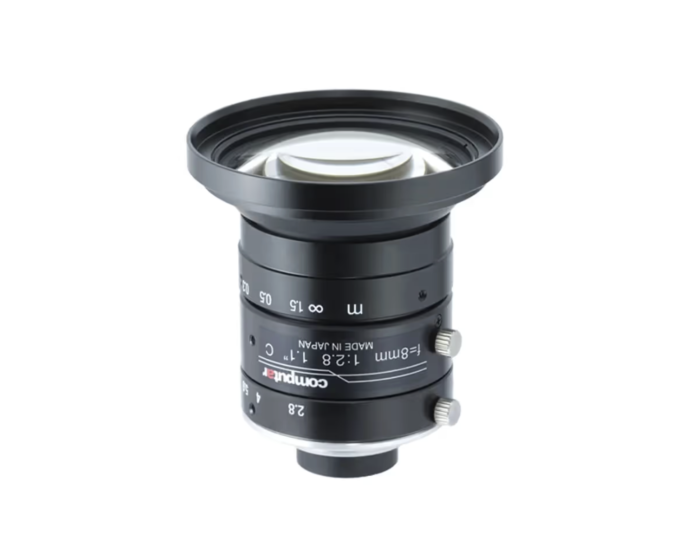

CBC-Computar V0828-MPY2 (V0828MPY2) 24 MP, 1.1" 8mm Fixed, F2.8, Ultra-low Distortion Lens (C-Mount)
Computar V0828-MPY2 8mm C-Mount Lens Overview
The CBC-Computar V0828-MPY2 is an 8mm F2.8 fixed focal length C-mount lens from Computar’s MPY Series, engineered for high-resolution machine vision cameras using up to a 1.1" sensor format. Designed for demanding industrial imaging applications, the V0828-MPY2 delivers 24 megapixel optical performance, a large Ø17.6mm image circle, and ultra-low distortion for accurate image capture across the full field of view.
The V0828-MPY2 combines a wide 8mm focal length with high-resolution optics, making it well suited for applications that require broad scene coverage, compact camera integration, and precise image detail. With support for 1.1", 1", and 2/3" sensor formats, this MPY Series lens provides flexibility for machine vision, robotics, UAV/drone imaging, intelligent traffic systems, medical imaging, AI vision, factory automation, and surveillance system design.
Built with manual iris and manual focus control, the Computar V0828-MPY2 allows integrators to fine-tune exposure and focus for fixed camera installations. Its lightweight design, vibration resistance up to 5G, and compact C-mount construction make it a strong option for industrial environments where optical stability, repeatable imaging, and long-term reliability are required.
For engineers and system designers working with high-resolution industrial cameras, the Computar V0828-MPY2 offers a balance of wide-angle coverage, low distortion, 24MP performance, and proven MPY Series image quality in a compact 8mm C-mount lens.
Key Features:
- 8mm fixed focal length lens for wide-angle machine vision imaging
- F2.8 maximum aperture for strong light-gathering performance
- Supports up to 24 megapixel resolution in the MPY Series
- Designed for 1.1" type high-resolution industrial cameras
- Large Ø17.6mm image circle for broad sensor compatibility
- Ultra-low distortion design for accurate inspection and measurement applications
- C-mount lens design for machine vision and industrial camera integration
- Manual iris and manual focus control for fixed installations
- Lightweight construction for robotics, UAV, embedded vision, and compact systems
- Vibration resistance up to 5G for industrial and mobile imaging environments
- Compatible with 1.1", 1", and 2/3" sensor formats
Applications:
- Machine vision inspection
- Factory automation
- Robotics and AI vision systems
- UAV and drone imaging
- Medical and laboratory imaging
- Intelligent traffic systems
- Security and surveillance cameras
- Embedded vision systems
- Quality control and defect detection
- Industrial measurement and alignment
| Model Number | V0828-MPY2 |
| Series | Computar MPY Series |
| Lens Type | Fixed focal length machine vision lens |
| Focal Length | 8mm |
| Maximum Aperture Ratio | 1:2.8 |
| Iris Range | F2.8 - F16.0 |
| Image Format | 1.1" type |
| Maximum Image Format | 14.2mm x 10.4mm, Ø17.6mm |
| Resolution Support | 24 Megapixel MPY Series optics / suitable for high-resolution 1.1" cameras |
| Mount | C-Mount |
| Iris Control | Manual |
| Focus Control | Manual |
| Focus Range | 0.2m - Infinity |
| Flange Back Length | 17.526mm |
| Effective Front Diameter | φ42.2mm |
| Effective Rear Diameter | φ15.3mm |
| Distortion - 1.1" Type | -0.6% |
| Distortion - 1" Type | -1.7% |
| Distortion - 2/3" Type | -2.8% |
| Angle of View - 1.1" Type | Diagonal: 93.9° / Horizontal: 83.0° / Vertical: 66.0° |
| Angle of View - 1" Type | Diagonal: 89.3° / Horizontal: 77.3° / Vertical: 61.7° |
| Angle of View - 2/3" Type | Diagonal: 69.0° / Horizontal: 57.3° / Vertical: 44.2° |
| Field of View - 1.1" Type | 38cm x 27cm |
| Field of View - 1" Type | 34cm x 25cm |
| Field of View - 2/3" Type | 23cm x 17cm |
| Dimensions | φ57.5mm x 53.2mm |
| Dimensions with VM0811 | φ75.0mm x 54.0mm |
| Dimensions with VM0810 | φ70.0mm x 54.0mm |
| Weight | 157.4g |
| Operating Temperature | -10°C to +50°C |
| Vibration Resistance | Up to 5G |
