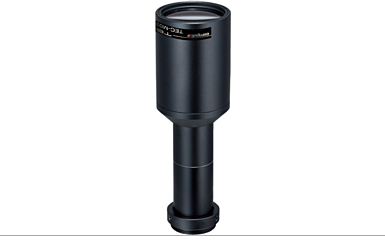

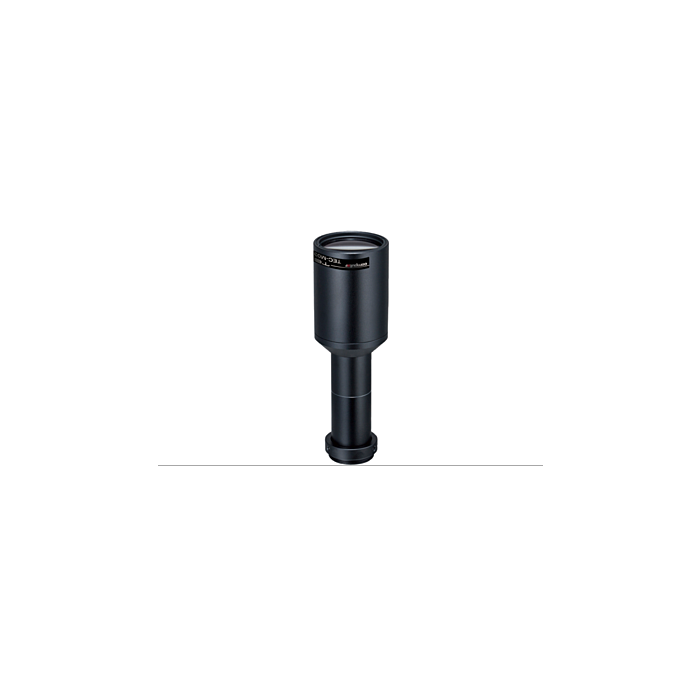

TEC-M03110MP (TECM03110MP): CBC-Computar 2MP, 2/3" 111mm, Telecentric Lens, 0.3x magnification (C-Mount)
SKU
Computar TEC-M03110MP
Quick Overview
2/3 type Cameras, 2 Megapixel Telecentric Lens, Magnification 0.3X, WD110mm.
Features:
| Magnification | 0.3X |
| Working Distance | 111mm |
| Effective F Number | 6.5 |
| Max. Image Format | φ11mm |
| Control | Iris: - Focus: - |
| Field of View | 29.3mm(H) x 22mm(V) 2/3" |
| Resolving Power *1 | 14.5µm |
| Depth of Field *2 | 5.75mm |
| NA | 0.023 |
| TV Distortion | 2/3 type: -0.026% |
| Back Focal Length | 17.0mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | - |
| Dimensions | φ55mm x 140.3mm |
| Weight | TBA |
| Operating Temperature | -10℃ - +50℃ |
