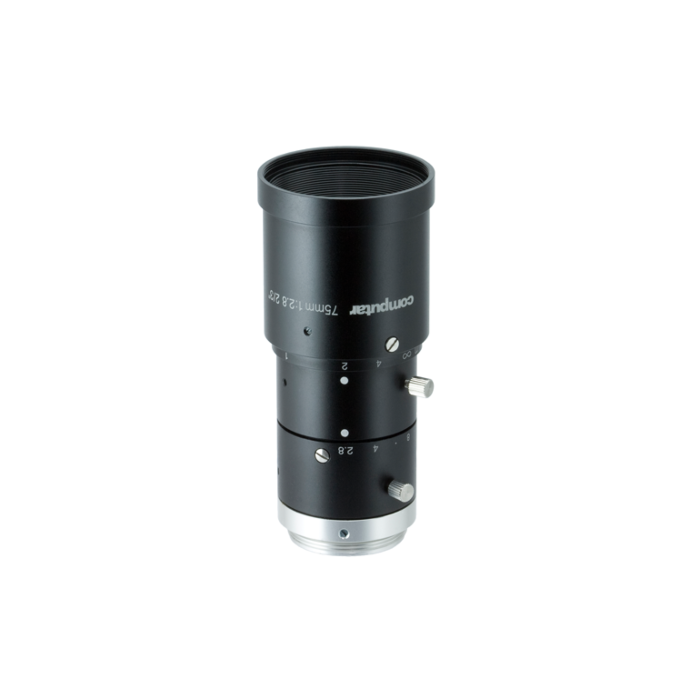

Computar M7528-MPW3 (M7528MPW3) 6 Megapixel 2/3" 75mm F2.8 (C Mount) Machine Vision Lens
SKU
Computar M7528-MPW3 6 MP 2/3" 75mm F2.8 Machine Vision Lens
75 mm industrial camera lens for machine vision and factory automation applications.
Features:
- 2/3” Format
- 6 Megapixel
- 75mm Fixed
- F2.8
- Full HD Format
- Fixed Iris
- Compact & Lightweight
- Shorter Working Distance
- Nominal Distortion Design
- Ensures Corner Brightness
- Available in 8mm, 12mm, 16mm, 35mm, 50mm and 75mm
Applications:
- Machine Vision
- Factory Automation
- Pass/Fail Testing
- Inspection
| Focal Length | 75mm |
| Aperture (F) | 1:2.8 |
| Max. Image Format | 8.8mm x 6.6mm(φ11mm) |
| Operation Range | Iris F2.8 - 16.0 Focus 0.4m ‐ Inf. |
| Control | Iris Manual - Focus Manual |
| Object Dimension at M.O.D. | 2/3 Type 47.0 x 35.2mm 1/1.8 Type 38.4 x 28.8mm 1/2.5 Type 30.4 x 22.9mm |
| Angle of View | 2/3 Type D 8.4° H 6.7° V 5.0° 1/1.8 Type D 6.9° H 5.5° V 4.1° 1/2.5 Type D 5.4° H 4.3° V 3.3° |
| Operating Temperature | -10℃ ‐ +50℃ |
| Effective Lens Aperature | Front φ26.1mm Rear φ15.8mm |
| Distortion | 2/3 Type (Y=5.5mm) 0.33% 1/1.8 Type (Y=4.5mm) 0.21% 1/2.5 Type (Y=3.55mm) 0.12% |
| Back Focal Length | 14.6mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M34 P=0.5mm |
| Dimensions | φ36mm x 75mm |
| Weight | 102g |
