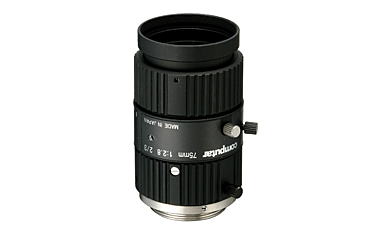

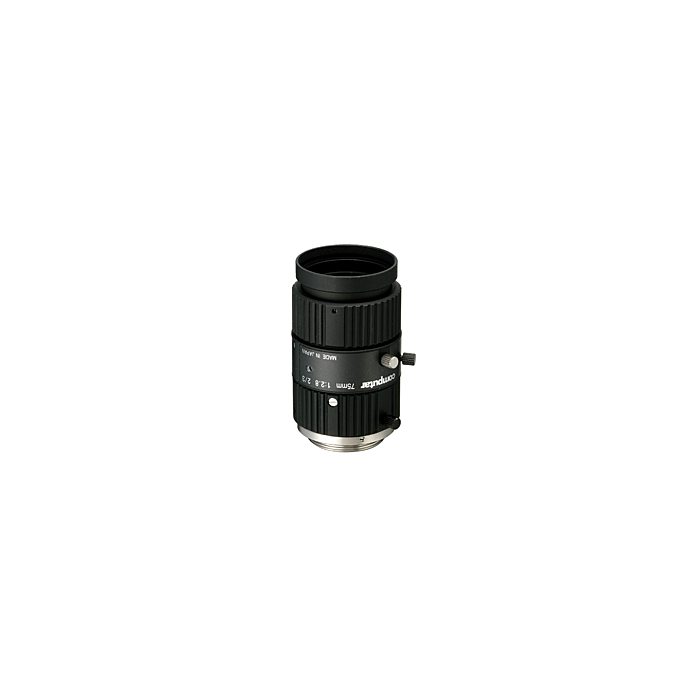

M7528-MP (M7528MP): CBC-Computar 2/3" 75mm f2.8 w/locking Iris & Focus, Megapixel Lens (C-Mount)
SKU
M7528-MP
Quick Overview
2/3 type, Megapixel Camera Lens, f=75mm, F2.8.
Features:
| Focal Length | 75mm |
| Max. Aperture Ratio | 1 : 2.8 |
| Max. Image Format | 8.8mm x 6.6mm |
| Operation Range | Iris: F2.8 - F16C Focus: 0.3m - Inf. |
| Control | Iris: Manual Focus: Manual |
| Object Dimension at M.O.D. | 2/3 type: 4.1cm x 3.1cm 1/2 type: 3cm x 2.2cm |
| Angle of View | 2/3 type : 8.5° (D) / 6.8° (H) / 5.1° (V) 1/2 type : 6.2° (D) / 5° (H) / 3.7° (V) |
| Operating Temperature | -10°C - +50°C |
| Effective lens Aperture | Front: 24.8mm Rear: 13.6mm |
| Distortion | 2/3 type: -0.43%(y=5.5) 1/2 type: -0.22%(y=4.0) |
| Back Focal Length | 21.5mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M30.5 P=0.5mm |
| Dimensions | 35mm x 57.75mm |
| Weight | 113g |
