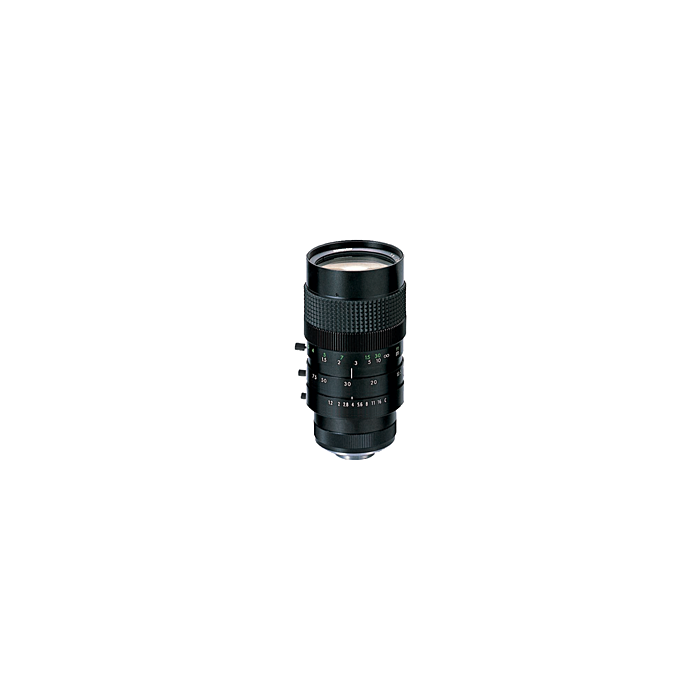

M6Z1212-3S (M6Z12123S): CBC-Computar 2/3" 12.5-75mm f1.2 6X Manual Zoom, Manual Iris lens (C-Mount)
2/3 type, Cameras, Manual Zoom, 6X, 12.5mm - 75mm, F1.2.
SKU
M6Z1212-3S
Computar Manual Zoom Lenses provide manual adjustment of focal length, iris and focus. For use where a variable angle of view is required. Main applications for this lens include inspection, machine vision and robotics.
| Focal Length | 12.5mm - 75mm |
| Max. Image Format | 1:1.2 |
| Max. Image Format | 8.8mm x 6.6mm (11mm) |
| Operation Range | Iris: F1.2 - F16C Focus: 1m - Inf. Zoom: 12.5mm - 75mm |
| Control | Iris: Manual Focus: Manual Zoom: Manual |
| Angle of View | 2/3 type: 46.9° - 8.3° (D) x 38.3° - 6.7° (H) x 29.2° - 5.1° (V) 1/2 type: 35.1° - 6.2° (D) x 28.3° - 5.0° (H) x 21.3° - 3.8° (V) 1/3 type: 26.6° - 4.7° (D) x 21.3° - 3.8° (H) x 16.1° - 2.8° (V) |
| Effective Lens Aperture | Front: φ46.5mm Rear: φ15.6mm |
| Back Focal Length | 15.4mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M55 P=0.75mm |
| Dimensions | 59.5mm x 114.5mm |
| Weight | 483 g |
